1, 000 lb Foundationless Jib Crane, 16 ft Reach, 12 ft Ht, 360° MPN:350F-1000-16-12
Free Shipping
In Stock
Elevate your operations with the TIGER TRACK 350F-1000-16-12 foundationless jib crane, designed for maximum flexibility and versatility. This 1,000 lb capacity crane features a 16 ft boom with 15 3/32 ft usable reach, allowing for precise and efficient material handling in tight spaces. Perfect for warehouses, manufacturing facilities, and construction sites, the 360° swivel and manual operation make it easy to maneuver and position loads with ease. With its durable steel construction and yellow enamel finish, this crane is built to withstand heavy use and withstand the test of time, making it an ideal solution for a variety of industries and applications.
Top product features:
- The crane has a 360° swivel, allowing for flexible and precise positioning.
- The crane has a 16 ft boom with a 15 3/32 ft usable reach, enabling users to lift and move heavy loads over a wide area.
- The crane's manual operation allows users to have control over the lifting and moving of loads, increasing safety and efficiency.
Top product applications:
- Construction Sites
- Warehouse Operations
- Manufacturing Plants

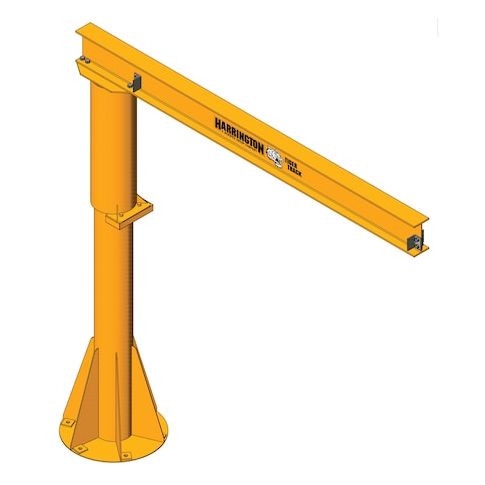

The TIGER TRACK 350F-1000-16-12 is a foundationless jib crane with a 1,000 lb maximum lifting capacity. It features a 16 ft boom (15 3/32 ft usable reach), 360° swivel, manual operation, steel open-beam construction and a yellow enamel finish. Height under boom/span is 12 ft, overall height is 13 ft and overall width is 14 ft. The unit includes the boom, head assembly and mast assembly. It is manufactured in accordance with AISC, ANSI B30.11, CMAA No. 74, and OSHA 1910.17 requirements.
Key Features:
- Base mount type: Foundationless
- Capacity: 1,000 lb (maximum lifting capacity)
- Boom length / Reach: 16 ft overall
- usable boom length 15 3/32 ft
- Swivel angle: 360 degrees
- Operation / Power source: Manual
- Beam type / Body material: Open beam
- steel construction
- Finish / Color: Yellow enamel
- Height under boom / span: 12 ft
- Overall dimensions: 13 ft overall height
- 14 ft overall width
- Mast diameter: 10 3/4 in
- Flange width: 6 1/2 in
- Includes: Boom, head assembly, mast assembly
- Standards: AISC, ANSI B30.11, CMAA No. 74, OSHA 1910.17
- Manufacturers warranty length: 5 yr
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 216.00
- Package Width: 36.00
- Package Height: 36.00
- Package Weight: 1455.00
