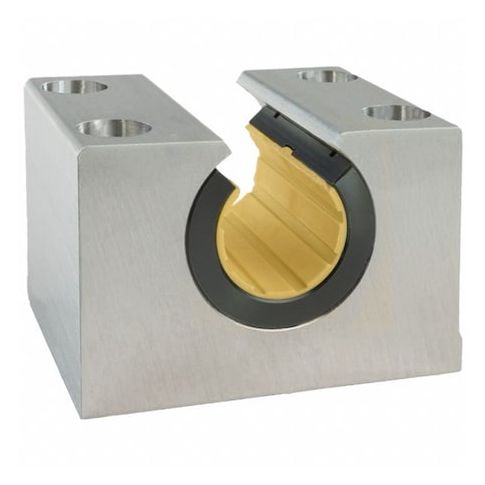

Linear Bearing, 12 mm ID, 43 mm Body W MPN:PLBM12OPN
Linear Bearing, 12 mm ID, 43 mm Body W
The Thompson PLBM 12 mm linear bearing is a high-performance, self-contained solution for precision applications. Its 1/2 inch inside diameter and 1 1/2 inch overall length make it ideal for use in robotics, CNC machinery, and other precision equipment. The bearing's anodized aluminum construction and polymer liner provide excellent durability and resistance to wear and corrosion. With a static load capacity of 1,510 lbf and dynamic load capacity of 215 lbf, it can handle demanding applications. Suitable for temperatures between -58°F and 185°F, this bearing is perfect for use in a variety of industries, including aerospace and automotive.
Top product features:
- Self-Alignment is not a feature of this product.
- Self-Aligning is not a feature of this product.
- The product has a Static Load Capacity of 1,510 lbf and a Dynamic Load Capacity of 215 lbf.
Top product applications:
- Linear bearing in a machine tool or CNC equipment due to its high load capacity and precision.
- Pillow block bearing in a conveyor system or material handling equipment due to its ability to handle heavy loads and withstand various temperatures.
- Linear bearing in a robotic arm or mechanical assembly due to its self-alignment feature and ability to operate in a wide temperature range.
Mounted Linear Bearing, System of Measurement Inch, Inside Diameter 1/2 in, Overall Length 1 1/2 in, Self-Alignment Not Self-Aligning, Liner Material Polymer, Material Anodized Aluminum, Static Load Capacity 1,510 lbf, Dynamic Load Capacity 215 lbf, Series PLBM, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -58 Degrees F, Housing Style Single, Pillow Block Type Open, Finish Anodized, Overall Height 1 1/8 in, Body Width 1.693 in, Includes Seals Seals Not Included
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.88
- Package Width: 1.50
- Package Height: 1.97
- Package Weight: 0.21
Product info last updated on February 10, 2026 6:32am UTC
Category: Bearings, V-belts and Power Transmission Equipment
