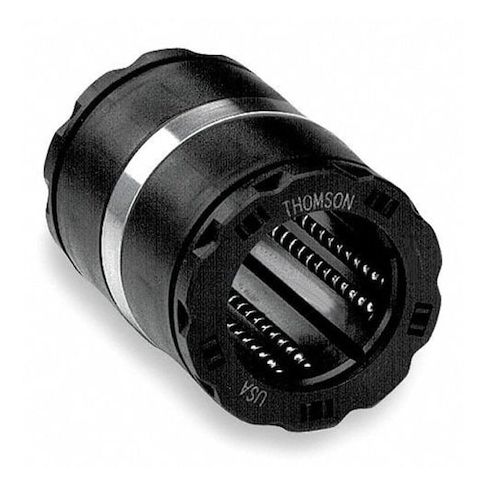

Ball Bushing Bearing, Closed, Bore 1 In MPN:SSU16WW
Ball Bushing Bearing, Closed, Bore 1 In
The Thompson Super Smart Linear Ball Bearing is a self-aligning, closed ball bushing bearing ideal for applications requiring precise movement and high load capacity. With a dynamic load capacity of 1,900 lbf and a steady state speed of 10 fps, this bearing is suitable for use in conveyor systems, packaging machinery, and other industrial applications where high-speed movement is necessary. Its temperature range of 0-185°F and accelerated speed of 450 fps make it a reliable choice for a variety of environments. The bearing's compact size and lightweight design make it easy to integrate into existing systems.
Top product features:
- Self-Alignment allows the bearing to compensate for misalignment in the application, ensuring smooth operation.
- Static Load Capacity of 1,900 lbf enables the bearing to withstand significant loads without deforming or failing.
- Steady State Speed of 10 fps indicates the bearing's ability to maintain consistent speed under normal operating conditions.
Top product applications:
- Linear motion systems
- Robotics and automation
- Precision machinery
Linear Ball Bearing, System of Measurement Inch, Inside Diameter 1 in, Outside Diameter 1 9/16 in, Self-Alignment Self-Aligning, Overall Length 2 1/4 in, Dynamic Load Capacity 1,900 lbf, Material Delrin, Series Super Smart, Static Load Capacity 1,900 lbf, Steady State Speed 10 fps, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Closed, Inside Diameter Tolerance -0.0005 in, Accelerated Speed 450 fps, Retention Hole Diameter 0.14 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 3.20
- Package Weight: 0.35
Product info last updated on April 23, 2026 3:23pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
