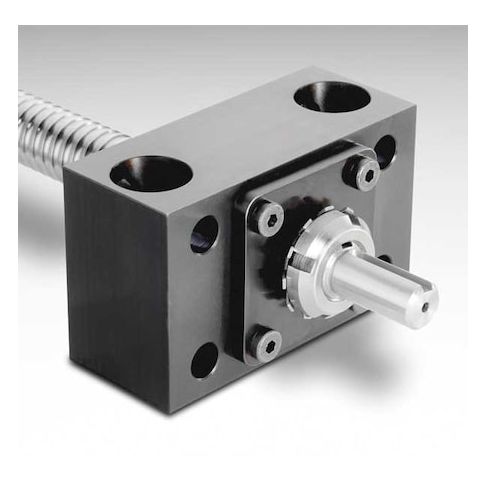

Ball Nut End Block, Bore Dia 15 mm MPN:7824155
Ball Nut End Block, Bore Dia 15 mm
Ball Nut End Block, Overall Depth 2.1 in, Material Carbon Steel, Bearing Type Fixed, For Use With Precision Ball Screw, Nominal Bore Diameter 0.75 in, Thru Bore Diameter 0.406 in, System of Measurement Inch, Thread Size 0.586 In.-32, Mounting Hole Diameter 0.281 in, Overall Height 2.13 in, Overall Width 3.5 in, Length through Bore 1.73 in, Mounting Surface to Shaft Center 1.125 in, Compatible Grainger Part Number 2LGE5, 2LGF3, 2LGG3, Static Load Capacity 1,060 lbf, Axial Load Capacity 2,320 lbf
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 3.40
- Package Height: 2.30
- Package Weight: 2.95
Product info last updated on February 9, 2026 9:52pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
