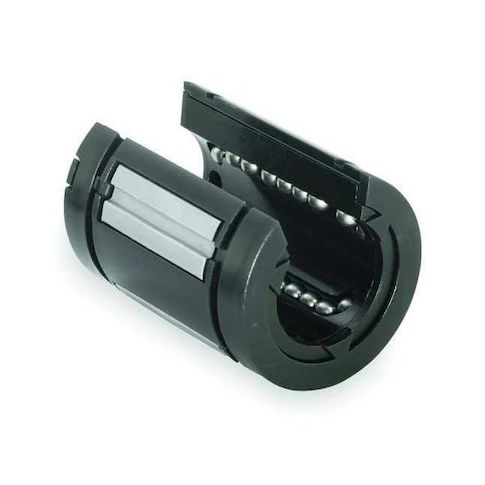

Linear Ball Bearing, 1 in Inside Dia, 780 lbf Dynamic Load Capacity, 2 1/4 in L MPN:SUPER16OPN
Linear Ball Bearing, 1 in Inside Dia, 780 lbf Dynamic Load Capacity, 2 1/4 in L
The Super Ball Bushing from Thompson is a high-performance linear ball bearing designed for demanding applications. With a self-aligning system and dynamic load capacity of 780 lbf, it can withstand heavy loads and maintain smooth operation. Its wide operating temperature range (-0°F to 185°F) and steady-state speed of 10 fps make it suitable for use in various industries, including aerospace, automotive, and manufacturing. The bearing's compact size and lightweight design also make it ideal for precision machinery and robotics applications, where accuracy and speed are crucial. Its durability and versatility make it an excellent choice for high-performance applications.
Top product features:
- Self-aligning design for easy and smooth installation
- Dynamic load capacity of 780 lbf for heavy-duty applications
- Material combination of Delrin and steel for durability and resistance to wear and tear
Top product applications:
- Robotics and Automation
- Precision machinery and equipment
- High-speed conveyor systems
Linear Ball Bearing, System of Measurement Inch, Inside Diameter 1 in, Outside Diameter 1 9/16 in, Self-Alignment Self-Aligning, Overall Length 2 1/4 in, Dynamic Load Capacity 780 lbf, Material Delrin/Steel, Series Super, Steady State Speed 10 fps, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Open, Inside Diameter Tolerance +/-0.001 in, Accelerated Speed 450 fps, Slot Width 0.56 in, Outside Diameter Tolerance +/-0.00045 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.30
- Package Width: 2.30
- Package Height: 3.00
- Package Weight: 0.20
