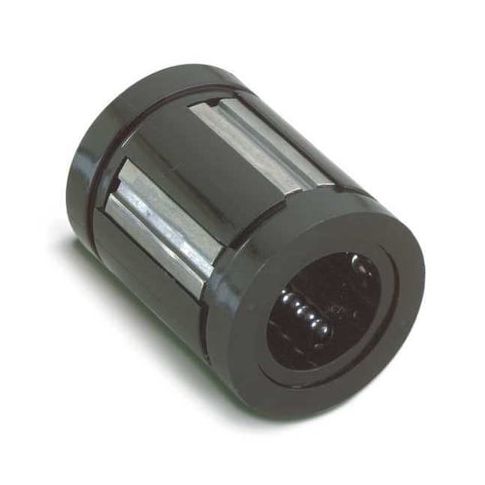

Linear Ball Bearing, 1 in Inside Dia, 1, 050 lbf Dynamic Load Capacity, 2 1/4 in L MPN:SUPER16
Linear Ball Bearing, 1 in Inside Dia, 1, 050 lbf Dynamic Load Capacity, 2 1/4 in L
The Super Ball Bushing from Thompson is a high-performance linear ball bearing designed for applications requiring self-alignment and precision movement. With a dynamic load capacity of 1,050 lbf and a steady state speed of 10 fps, this bearing is ideal for use in robotics, automation, and precision machinery. Its temperature range of -0°F to 185°F and accelerated speed of 450 fps make it suitable for a wide range of industrial applications. The bearing's Delrin/Steel construction provides durability and resistance to wear, ensuring reliable performance in demanding environments. Its compact size and low weight make it an excellent choice for space-constrained systems.
Top product features:
- Self-Aligning design allows for smooth and stable operation in varying applications.
- Dynamic Load Capacity of 1,050 lbf enables the product to handle heavy loads.
- Closed Ball Bearing Type provides a secure and contained environment for the balls, reducing the risk of debris or contamination.
Top product applications:
- Robotics and automation systems
- Machine tool spindles
- Precision medical equipment
Linear Ball Bearing, System of Measurement Inch, Inside Diameter 1 in, Outside Diameter 1 9/16 in, Self-Alignment Self-Aligning, Overall Length 2 1/4 in, Dynamic Load Capacity 1,050 lbf, Material Delrin/Steel, Series Super, Steady State Speed 10 fps, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Closed, Inside Diameter Tolerance +/-0.001 in, Accelerated Speed 450 fps, Outside Diameter Tolerance +/-0.00045 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.90
- Package Height: 3.30
- Package Weight: 0.28
Product info last updated on January 27, 2026 1:40am UTC
Category: Bearings, V-belts and Power Transmission Equipment
