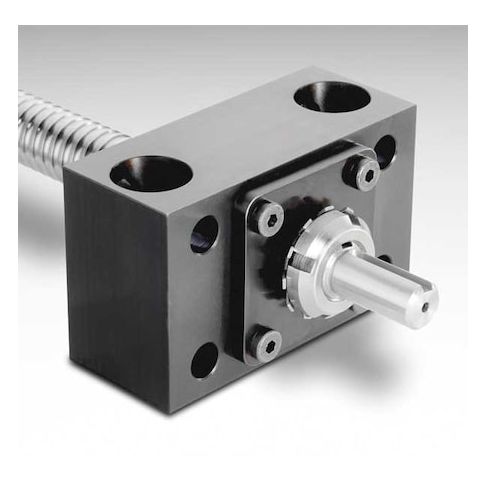

Ball Nut End Block, Bore Dia 20 mm MPN:7824157
Ball Nut End Block, Bore Dia 20 mm
The Thompson Ball Nut End Block is a precision-engineered component designed for use with precision ball screws, offering a reliable and durable solution for a variety of applications. Its carbon steel construction and fixed bearing type provide a high static load capacity of 1,838 lbf, making it suitable for demanding industrial and manufacturing environments. With a bore diameter of 1 inch and a thru bore diameter of 0.656 inch, this end block is ideal for use in machine tools, CNC machines, and other precision machinery, providing a secure and stable mounting solution for optimal performance and accuracy.
Top product features:
- Ball Nut End Block is designed for use with precision ball screw
- Has a fixed bearing type for stable and consistent performance
- Provides a static load capacity of 1838 lbf
Top product applications:
- Precision Linear Motion Systems
- Automated Machinery and Equipment
- Robotics and Automation
Ball Nut End Block, Overall Depth 2.7 in, Material Carbon Steel, Bearing Type Fixed, For Use With Precision Ball Screw, Nominal Bore Diameter 1 in, 1.171 in, Thru Bore Diameter 0.656 in, System of Measurement Inch, Thread Size 0.781 In.-32, Mounting Hole Diameter 0.469 in, Overall Height 2.75 in, Overall Width 4.5 in, Length through Bore 2.2 in, Mounting Surface to Shaft Center 1.438 in, Compatible Grainger Part Number 2LGE6, 2LGE7, 2LGF4, 2LGF6, 2LGG4, 2LGG6, Static Load Capacity 1,838 lbf
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.90
- Package Width: 4.30
- Package Height: 3.30
- Package Weight: 5.47
Product info last updated on January 26, 2026 2:14am UTC
Category: Bearings, V-belts and Power Transmission Equipment
