Ball Nut End Block, Bore Dia 15 mm MPN:7829548

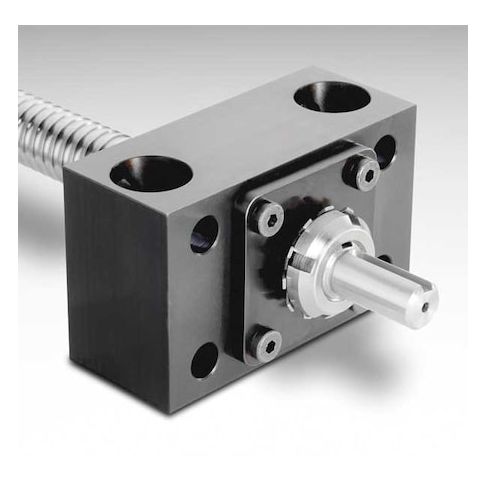

Ball Nut End Block, Bore Dia 15 mm
Elevate your precision motion control systems with the Ball Nut End Block from Thompson. Designed for use with precision ball screws, this carbon steel end block provides a fixed bearing solution for demanding applications. With a static load capacity of 1,057 lbf and axial load capacity of 2,316 lbf, it's ideal for use in high-precision manufacturing, aerospace, and medical industries. Its compact design and metric system make it a versatile addition to any system, while its durable construction ensures reliable performance in harsh environments. Upgrade your motion control systems with the Ball Nut End Block today.
Top product features:
- Fixed Bearing Type for Reduced Friction
- Carbon Steel Material for High Strength and Durability
- Through Bore Diameter of 10.31 mm for Smooth Movement of Precision Ball Screw
Top product applications:
- Precision Ball Screw Assembly
- Automated Machine Tool
- Robotics and Automation Systems
Ball Nut End Block, Overall Depth 2.1 in, Material Carbon Steel, Bearing Type Fixed, For Use With Precision Ball Screw, Nominal Bore Diameter 0.75 in, Thru Bore Diameter 10.31 mm, System of Measurement Metric, Thread Size M15x1, Mounting Hole Diameter 7.13 mm, Overall Height 2.13 in, Overall Width 3.5 in, Length through Bore 1.732 in, Mounting Surface to Shaft Center 1.125 in, Compatible Grainger Part Number 2LGH2, 2LGH3, Static Load Capacity 1,057 lbf, Axial Load Capacity 2,316 lbf
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.40
- Package Height: 2.40
- Package Weight: 2.85
Product info last updated on January 18, 2026 2:35pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
