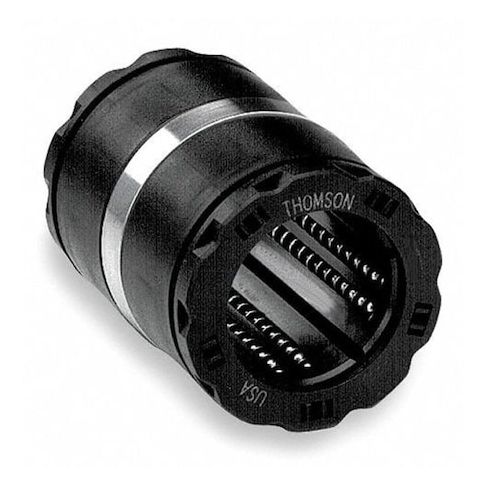

Ball Bushing Bearing, Closed, Bore .500 In MPN:SS6U8WW
Ball Bushing Bearing, Closed, Bore .500 In
The Thompson Super Smart Linear Ball Bushing Bearing is a precision-engineered component ideal for applications requiring smooth, self-aligning motion. With a bore diameter of 0.500 inches and a dynamic load capacity of 265 pounds, this bearing is perfect for use in robotics, medical devices, and other equipment that demands precise movement. Its closed design and self-aligning feature ensure consistent performance and reduce wear on surrounding components. Operating temperatures range from 0 to 185 degrees Fahrenheit, making it suitable for a wide range of industrial and commercial applications. Its compact size and low weight also make it an excellent choice for space-constrained projects.
Top product features:
- Self-Alignment allows the bearing to adjust to misaligned shafts, reducing wear and increasing lifespan.
- Dynamic Load Capacity of 265 lbf enables the bearing to handle heavy loads without failing.
- Static Load Capacity of 360 lbf provides a high level of support and stability under static conditions.
Top product applications:
- Robotics and automation systems
- Conveyor systems and machinery
- Precision machinery and equipment
Linear Ball Bearing, System of Measurement Inch, Inside Diameter 1/2 in, Outside Diameter 7/8 in, Self-Alignment Self-Aligning, Overall Length 1 1/4 in, Dynamic Load Capacity 265 lbf, Material Delrin, Series Super Smart, Static Load Capacity 360 lbf, Steady State Speed -, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Closed, Inside Diameter Tolerance -0.0005 in, Accelerated Speed 450 fps, Retention Hole Diameter 0.13 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 1.40
- Package Height: 2.00
- Package Weight: 0.06
Product info last updated on January 17, 2026 6:10pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
