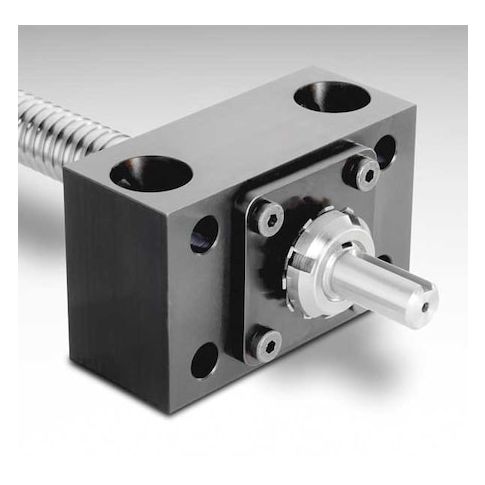

Ball Nut End Block, Bore Dia 30 mm MPN:7824159
Ball Nut End Block, Bore Dia 30 mm
Ball Nut End Block, Overall Depth 3 in, Material Carbon Steel, Bearing Type Fixed, For Use With Precision Ball Screw, Nominal Bore Diameter 1.5 in, Thru Bore Diameter 0.906 in, System of Measurement Inch, Thread Size 1.173 In.-18, Mounting Hole Diameter 0.656 in, Overall Height 3.63 in, Overall Width 6.5 in, Length through Bore 2.52 in, Mounting Surface to Shaft Center 1.875 in, Compatible Grainger Part Number 2LGE8, 2LGF7, 2LGG7, Static Load Capacity 3,050 lbf, Axial Load Capacity 5,200 lbf
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.70
- Package Width: 5.40
- Package Height: 4.40
- Package Weight: 11.30
Product info last updated on February 10, 2026 10:11am UTC
Category: Bearings, V-belts and Power Transmission Equipment
