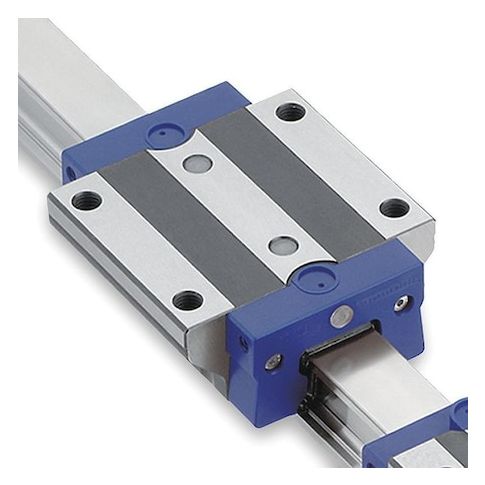

Bearing Ball Carriage, Height 20.20 mm MPN:511H15A0
Bearing Ball Carriage, Height 20.20 mm
The Thompson Bearing Ball Carriage is a high-performance linear motion component designed for precise and reliable movement in a variety of applications. Its compact 20.2mm carriage height and 39.6mm length make it ideal for use in robotics, medical devices, and other precision machinery. The carriage's steel alloy construction and 9,000N dynamic load capacity ensure smooth and durable operation, while its 19,600N static load capacity and 67N radial and axial load ratings provide flexibility in design. Suitable for use with 500 Series Ball Rail, this carriage offers a reliable and efficient solution for linear motion applications.
Top product features:
- Carriage height is 20.2 mm, allowing for precise positioning and clearance in tight spaces.
- The carriage is designed to support radial loads of up to 67 N and axial loads of up to 67 N, enabling smooth operation under heavy loads.
- The ball carriage is designed for use with 500 Series ball rail, providing a high-precision linear motion system.
Top product applications:
- Automotive Industry
- Robotics and Automation
- Medical Equipment Manufacturing
Linear Bearing Ball Carriage, Carriage Height 20.2 mm, Carriage Length 39.6 mm, Carriage Width 47 mm, Carriage Material Steel Alloy, Roller Material Steel Alloy, Radial Load - Maximum 67 N, Axial Load - Maximum 67 N, Manufacturer Size 15, Dynamic Load Capacity 9,000 N, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 15 mm, For Use With 500 Series Ball Rail, Static Load Capacity 19,600 N, Combined Carriage and Rail Height 24 mm, Series 500
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.00
- Package Height: 1.20
- Package Weight: 0.45
Product info last updated on February 7, 2026 8:23am UTC
Category: Bearings, V-belts and Power Transmission Equipment
