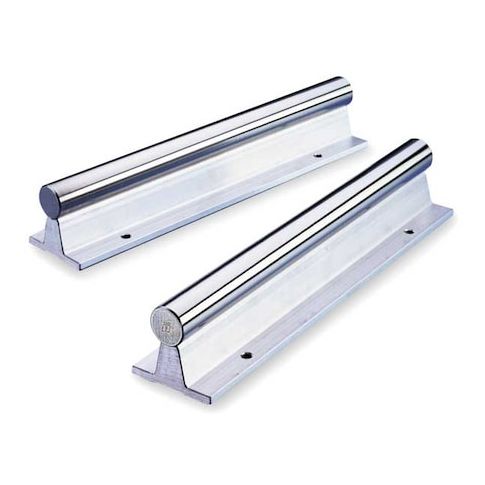

Support Rail, Aluminum, 24in L, 1.375in H MPN:SR8-PD
Support Rail, Aluminum, 24in L, 1.375in H
Elevate your industrial setup with Thompson's 24in Aluminum Support Rail, designed for seamless integration with 60 Case Shafts. This pre-drilled rail provides a sturdy foundation for linear motion systems, ensuring smooth operation and reduced wear on components. Its aluminum construction boasts a high strength-to-weight ratio, making it ideal for applications where weight is a concern. Perfect for use in manufacturing, material handling, and automation systems, this support rail offers reliable support and easy installation, minimizing downtime and increasing productivity. Its compact size and versatile design make it a versatile solution for a wide range of industrial applications.
Top product features:
- Pre-drilled holes for easy mounting
- Made of aluminum for durability and corrosion resistance
- Supports linear shafts with a mounting surface centered 1.125 inches from the shaft end
Top product applications:
- Automotive equipment manufacturing
- Machine tool manufacturing
- Robotics and automation systems
Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Unfinished, Mounting Surface to Shaft Center 1.125 in, Overall Width 1.5 in, Overall Height Not Applicable, Mystery Dimension 1.375 in, Thread Size 0.17 in, Mounting Hole Center to Center 4 in, Mounting Hole Center to Shaft End 2 in, Base Height 0.19 in, Profile Type Standard Profile, Bolt Size #6, For Use With 60 Case Shafts, Mounting Hole Size 0.169
Additional Information
- Country of Origin: XX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.10
- Package Width: 1.90
- Package Height: 1.50
- Package Weight: 1.35
Product info last updated on February 11, 2026 11:24pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
