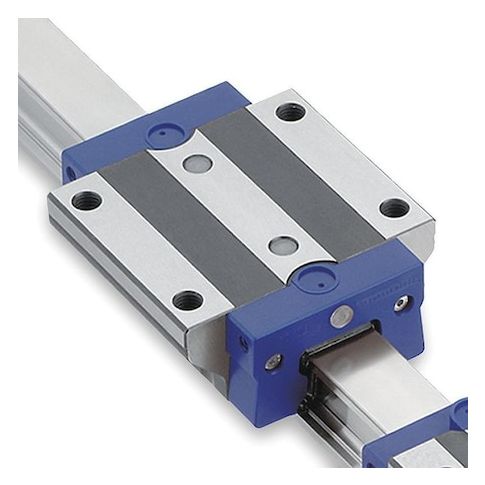

Bearing Ball Carriage, Height 20.20 mm MPN:511H15C0D
Bearing Ball Carriage, Height 20.20 mm
The Thompson Bearing Ball Carriage is a high-performance linear motion component designed for a wide range of industrial applications. With a compact carriage height of 20.2mm and a dynamic load capacity of 9,000N, it provides reliable and precise movement in heavy-duty environments. Suitable for use with 500 Series Ball Rail, this carriage is ideal for applications such as machine tools, robotics, and automation systems. Its steel alloy construction and ball-bearing design ensure smooth and quiet operation, while its compact size and lightweight design make it easy to integrate into tight spaces.
Top product features:
- Carriage height of 20.2 mm allows for compact installation in tight spaces.
- Supports radial loads of up to 67 N and axial loads of up to 67 N.
- Has a dynamic load capacity of 9,000 N for heavy-duty applications.
Top product applications:
- Precision machinery
- Automotive applications
- Medical equipment assembly
Linear Bearing Ball Carriage, Carriage Height 20.2 mm, Carriage Length 39.6 mm, Carriage Width 34 mm, Carriage Material Steel Alloy, Roller Material Steel Alloy, Radial Load - Maximum 67 N, Axial Load - Maximum 67 N, Manufacturer Size 15, Dynamic Load Capacity 9,000 N, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 15 mm, For Use With 500 Series Ball Rail, Static Load Capacity 19,600 N, Combined Carriage and Rail Height 24 mm, Series 500
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.00
- Package Height: 1.40
- Package Weight: 0.37
Product info last updated on February 10, 2026 7:54am UTC
Category: Bearings, V-belts and Power Transmission Equipment
