Plain Bushing Bearing, Open, ID 1.500 In MPN:FNYBU24LOPN

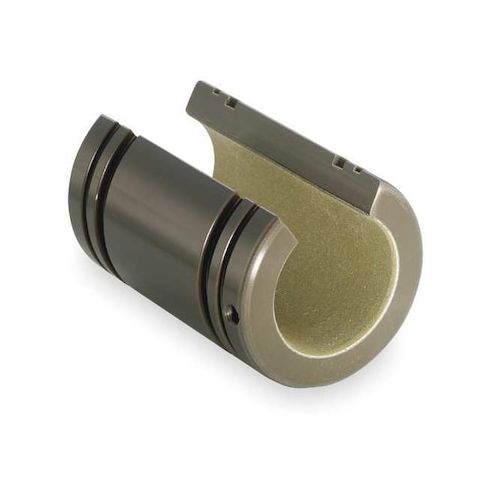

Plain Bushing Bearing, Open, ID 1.500 In
The Plain Bushing Bearing from Thompson is a self-lubricating bearing designed for applications requiring high temperature stability and low friction. With a temperature range of -400°F to 500°F, it can withstand extreme conditions. The bearing's aluminum construction and TEP 950 liner provide excellent durability and corrosion resistance. Its compensated running clearance ensures smooth operation, while the self-lubricating feature reduces maintenance needs. Suitable for use in aerospace, automotive, and industrial applications, this bearing is ideal for high-temperature environments, such as engines, gearboxes, and other mechanical systems. Its compact size and lightweight design make it a versatile solution for various industries.
Top product features:
- Self-lubrication allows for reduced maintenance and extended bearing life.
- TEP 950 liner provides corrosion resistance and improved wear performance.
- Operating temperature range from -400°F to 500°F enables use in extreme environments.
Top product applications:
- Aerospace applications due to its high temperature range and self-lubricating properties
- Industrial equipment such as pumps and gearboxes due to its high load capacity and corrosion resistance
- Automotive applications such as engine mounts and suspension components due to its compact size and high temperature range
Plain Bushing Bearing, System of Measurement Inch, Running Clearance Class Compensated, Inside Diameter 1 1/2 in, Outside Diameter 2 3/8 in, Overall Length 3 in, Static Load Capacity 31,137.551 N, Material Aluminum, Liner TEP 950, Self-Lubrication Self-Lubricating, Series FluoroNyliner, Maximum Operating Temperature 500 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Open, Recommended Housing Bore -
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 3.00
- Package Weight: 0.60
Product info last updated on January 31, 2026 9:40pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
