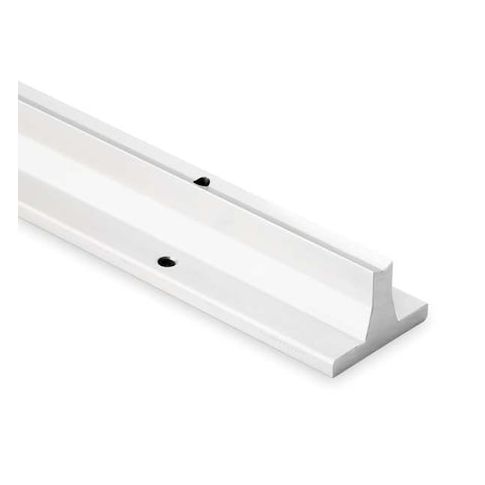

Support Rail, Aluminum, 24in L, 1.875in H MPN:SR12-PD
Support Rail, Aluminum, 24in L, 1.875in H
This aluminum support rail is designed to provide stability and support for 60 case shafts, ideal for applications requiring precise alignment and secure mounting. Its pre-drilled linear shaft support rail ensures easy installation and a secure fit. The rail's standard profile and #10 bolt size make it compatible with a wide range of shafts and mounting systems. With a lead time of just 6 days and a minimum order quantity of 1, this support rail is perfect for prototyping, small-scale production, or one-off projects. Its compact size and lightweight design make it easy to integrate into any system.
Top product features:
- Pre-drilled holes for easy mounting to a shaft
- Made of aluminum for durability and corrosion resistance
- Supports linear shafts up to 24 inches long
Top product applications:
- Linear Motion Systems
- Machine Tool Components
- Automated Assembly Lines
Pre-Drilled Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Unfinished, Mounting Surface to Shaft Center 1.5 in, Overall Width 1.75 in, Overall Height Not Applicable, Mystery Dimension 1.875 in, Thread Size 0.22 in, Mounting Hole Center to Center 6 in, Mounting Hole Center to Shaft End 3 in, Base Height 0.25 in, Profile Type Standard Profile, Bolt Size #10, For Use With 60 Case Shafts, Mounting Hole Size 0.221
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.20
- Package Width: 2.20
- Package Height: 1.70
- Package Weight: 2.09
Product info last updated on January 18, 2026 12:22am UTC
Category: Bearings, V-belts and Power Transmission Equipment
