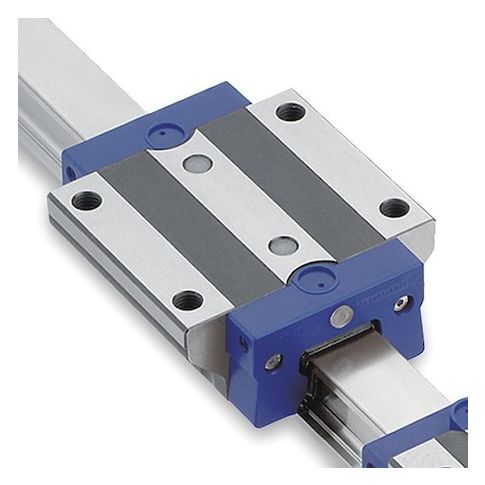

Bearing Ball Carriage, Height 25.50 mm MPN:511H20A1
Bearing Ball Carriage, Height 25.50 mm
The Thompson Bearing Ball Carriage is a precision-engineered component designed for use with 500 Series Ball Rail systems. With a carriage height of 25.5 mm and a length of 49.5 mm, this carriage provides a reliable and smooth motion solution for a wide range of applications. Suitable for use in robotics, automation, and precision machinery, it can handle radial and axial loads of up to 134 N. The carriage's steel alloy construction and lubrication requirements ensure long-lasting performance and low maintenance. Its compact size and high load capacity make it an ideal choice for applications where precision and reliability are paramount.
Top product features:
- Carriage Height 25.5 mm
- Can withstand a maximum radial load of 134 N
- Has a dynamic load capacity of 14,400 N
Top product applications:
- Conveyor Systems
- Robotics and Automation
- Machine Tooling and CNC Machinery
Linear Bearing Ball Carriage, Carriage Height 25.5 mm, Carriage Length 49.5 mm, Carriage Width 63 mm, Carriage Material Steel Alloy, Roller Material Steel Alloy, Radial Load - Maximum 134 N, Axial Load - Maximum 134 N, Manufacturer Size 20, Dynamic Load Capacity 14,400 N, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 20 mm, For Use With 500 Series Ball Rail, Static Load Capacity 31,400 N, Combined Carriage and Rail Height 30 mm, Series 500
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.70
- Package Height: 1.60
- Package Weight: 0.95
Product info last updated on April 7, 2026 10:31am UTC
