Bearing Ball Carriage, Height 20.20 mm MPN:511H15A1
Bearing Ball Carriage, Height 20.20 mm

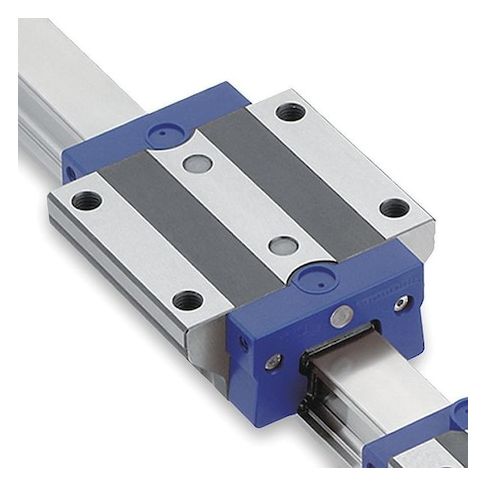

The Thompson Bearing Ball Carriage is a high-performance linear motion component designed for use with 500 Series Ball Rail. With a dynamic load capacity of 9,000 N and a static load capacity of 19,600 N, this carriage is ideal for applications requiring precision and reliability. Its compact design, measuring 20.2 mm in height and 39.6 mm in length, makes it perfect for use in robotics, automation, and CNC machinery. The carriage requires lubrication for optimal performance, but its steel alloy construction ensures durability and resistance to wear. Suitable for radial and axial loads, it's an excellent choice for demanding industrial applications.
Top product features:
- It has a dynamic load capacity of 9,000 N, allowing for heavy loads to be supported.
- It is designed to operate with 500 Series Ball Rail, providing compatibility with a specific type of rail system.
- It requires lubrication, indicating that it needs maintenance to function properly.
Top product applications:
- Automotive applications
- Robotics and automation
- Precision machinery
Linear Bearing Ball Carriage, Carriage Height 20.2 mm, Carriage Length 39.6 mm, Carriage Width 47 mm, Carriage Material Steel Alloy, Roller Material Steel Alloy, Radial Load - Maximum 67 N, Axial Load - Maximum 67 N, Manufacturer Size 15, Dynamic Load Capacity 9,000 N, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 15 mm, For Use With 500 Series Ball Rail, Static Load Capacity 19,600 N, Combined Carriage and Rail Height 24 mm, Series 500
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 2 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.80
- Package Height: 1.20
- Package Weight: 0.45
Product info last updated on January 14, 2026 10:12am UTC
Category: Bearings, V-belts and Power Transmission Equipment
