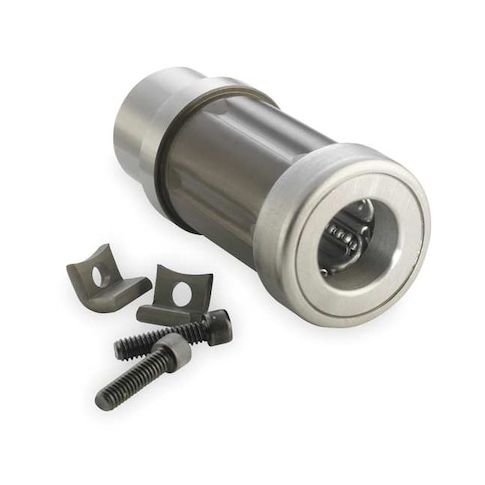

Ball Bushing Die, Bore Dia 2.000 In MPN:DS32
Ball Bushing Die, Bore Dia 2.000 In
The Thompson Ball Bushing Die Set is a high-performance tool designed for precision applications. With a bore diameter of 2 inches and a bearing outside diameter of 3.53 inches, this die set offers a dynamic load capacity of 1,100 lbf. Its steel construction and +/-0.001 bore tolerance ensure accuracy and durability. Suitable for use in various industries, including machining and manufacturing, this die set can be used for applications such as precision bearing installation and maintenance. Its high operating temperature of 500 Degrees F makes it ideal for use in demanding environments. The die set includes mounting hardware for easy installation.
Top product features:
- Bore diameter is 2 inches to accommodate standard machinery components.
- Bearing outside diameter is 3.53 inches for secure mounting.
- Dynamic load capacity is 1,100 lbf for heavy-duty applications.
Top product applications:
- Machine Tooling
- Automotive Manufacturing
- Aerospace Engineering
Ball Bushing Die Set, Bore Diameter 2 in, Bearing Outside Diameter 3.53 in, Overall Length 6.36 in, Dynamic Load Capacity 1,100 lbf, Bore Tolerance - Maximum 0.001 in, Bore Tolerance - Minimum -0.001 in, Color Steel, Bearing Type Die Set, Bore Tolerance +/-0.001, Material Steel, Finish Steel, Maximum Operating Temperature 500 Degrees F, Pilot Length 1.94 in, Includes (4) Clamps, (4) Mounting Screws, Recommended Mounting Hole Diameter 2.5 in, Pilot Diameter 2.5007/2.5003 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.80
- Package Height: 7.00
- Package Weight: 5.60
Product info last updated on February 10, 2026 4:26am UTC
Category: Bearings, V-belts and Power Transmission Equipment
