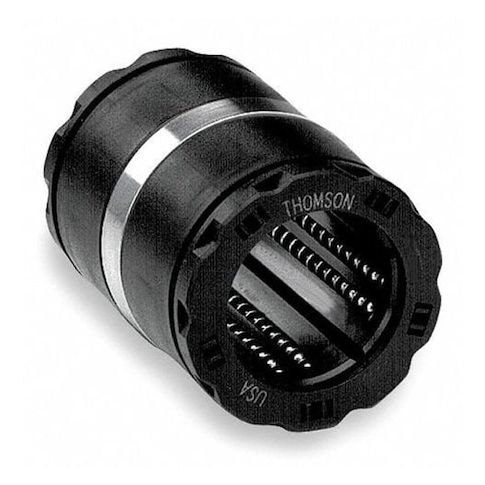

Super Plus Bushing, Bore Dia 12 mm MPN:SPM12
Super Plus Bushing, Bore Dia 12 mm
The Super Plus Bushing from Thompson is a precision-engineered linear ball bearing designed for high-performance applications. With a self-aligning mechanism and a dynamic load capacity of 187 lbf, this bushing ensures smooth and consistent movement. Its Delrin/Steel construction provides durability and resistance to temperature fluctuations, making it suitable for use in environments ranging from -20 to 185°F. Ideal for applications such as robotics, automation, and precision machinery, the Super Plus Bushing delivers steady-state speeds of up to 3 mm/sec and accelerated speeds of up to 150 mm/sec, making it an excellent choice for demanding industrial and commercial settings.
Top product features:
- Self-Alignment Self-Aligning feature allows the bearing to compensate for misalignment between shaft and housing.
- Closed Ball Bearing Type provides a secure and sealed environment for the bearing components.
- Material Delrin/Steel construction combines the durability of steel with the low-friction properties of Delrin.
Top product applications:
- Pneumatic cylinder components
- High-precision mechanical assemblies
- Automated machinery components
Linear Ball Bearing, System of Measurement Metric, Inside Diameter 12 mm, Outside Diameter 22 mm, Self-Alignment Self-Aligning, Overall Length 32 mm, Dynamic Load Capacity 187 lbf, Material Delrin/Steel, Series Super, Steady State Speed 3 mm/sec, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Closed, Inside Diameter Tolerance + 0.011 mm, Accelerated Speed 150 mm/sec
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 2.00
- Package Weight: 0.06
Product info last updated on February 9, 2026 9:46pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
