Ball Nut End Block, Bore Dia 12 mm MPN:7824154
Ball Nut End Block, Bore Dia 12 mm

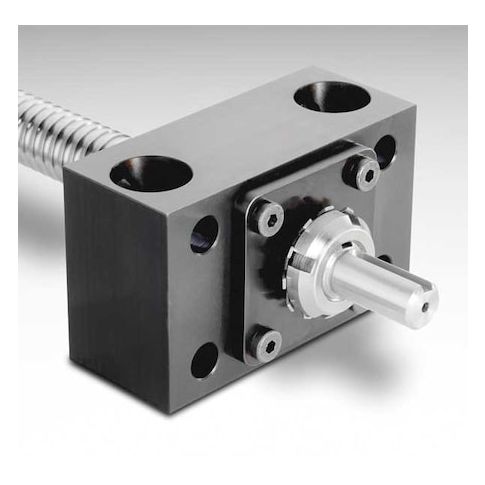

This Ball Nut End Block from Thompson is a precision-engineered component designed for use with precision ball screws in various industrial applications. Its carbon steel construction provides a strong and durable bearing type, capable of withstanding static loads of up to 630 lbf and axial loads of up to 1,600 lbf. With a thru bore diameter of 0.406 in and a nominal bore diameter of 0.631 in, this end block is ideal for use in robotics, CNC machines, and other precision motion control systems where accurate and reliable movement is critical. Its compact design and ease of installation make it a valuable addition to any manufacturing or engineering project.
Top product features:
- Fixed bearing type
- Precision ball screw compatibility
- Thru bore diameter of 0.406 in for shaft passage
Top product applications:
- Linear Motion Systems
- Machine Tools
- Precision Automation Equipment
Ball Nut End Block, Overall Depth 1.6 in, Material Carbon Steel, Bearing Type Fixed, For Use With Precision Ball Screw, Nominal Bore Diameter 0.631 in, Thru Bore Diameter 0.406 in, System of Measurement Inch, Thread Size 15/32 In.-32, Mounting Hole Diameter 0.281 in, Overall Height 1.88 in, Overall Width 3 in, Length through Bore 1.26 in, Mounting Surface to Shaft Center 1 in, Compatible Grainger Part Number 2LGE4, 2LGF2, 2LGG2, Static Load Capacity 630 lbf, Axial Load Capacity 1,600 lbf
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.40
- Package Height: 2.30
- Package Weight: 1.91
Product info last updated on February 9, 2026 10:15pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
