Plain Bushing Bearing, Closed, ID 1.000 In MPN:FNYBU16L

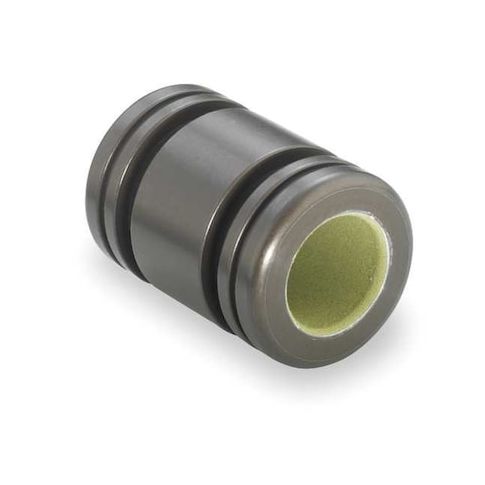

Plain Bushing Bearing, Closed, ID 1.000 In
The Thompson Plain Bushing Bearing is a reliable and versatile solution for various applications. Its self-lubricating design and wide temperature range make it suitable for use in high-temperature and low-temperature environments. With a static load capacity of 15,568.776 N, this bearing can handle heavy loads and stresses. Its compact size and lightweight material also make it ideal for use in space-constrained systems. The bearing's closed design and compensated running clearance ensure smooth operation and long lifespan. Suitable for use in industries such as aerospace, automotive, and industrial automation, this bearing provides reliable performance and durability.
Top product features:
- Closed design provides a secure seal against contaminants and debris
- Self-lubricating liner reduces friction and wear on moving parts
- Operating temperature range of -400°F to 500°F allows for use in extreme environments
Top product applications:
- Pneumatic or hydraulic cylinder support
- Linear motion applications in extreme temperatures
- High-precision machining and assembly operations
Plain Bushing Bearing, System of Measurement Inch, Running Clearance Class Compensated, Inside Diameter 1 in, Outside Diameter 1 5/8 in, Overall Length 2 1/4 in, Static Load Capacity 15,568.776 N, Material Aluminum, Liner TEP 950, Self-Lubrication Self-Lubricating, Series FluoroNyliner, Maximum Operating Temperature 500 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Closed, Recommended Housing Bore -
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.70
- Package Height: 3.00
- Package Weight: 0.26
Product info last updated on March 22, 2026 7:26pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
