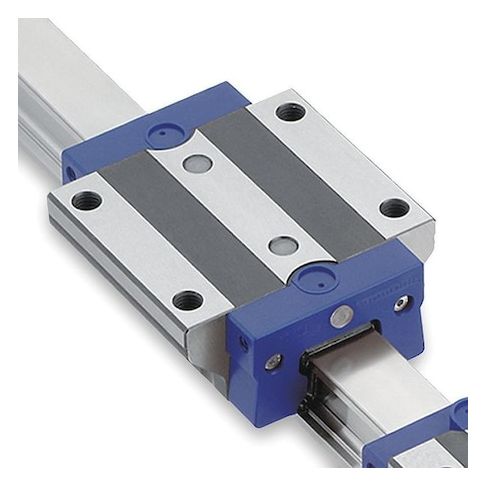

Bearing Ball Carriage, Height 20.20 mm MPN:511H15A0D
Bearing Ball Carriage, Height 20.20 mm
The Thompson Bearing Ball Carriage is a versatile and reliable component for linear motion applications. Ideal for use with 500 Series Ball Rail, this carriage features a compact design with a carriage height of 20.2 mm and a carriage length of 39.6 mm, making it suitable for a variety of industrial and commercial applications. With a maximum radial and axial load of 67 N, this carriage can handle demanding loads while maintaining smooth and precise movement. Suitable for use in robotics, automation, and precision machinery, the Bearing Ball Carriage offers high static and dynamic load capacities, ensuring reliable performance in a range of environments.
Top product features:
- Supports radial loads up to 67 N
- Supports axial loads up to 67 N
- Has a dynamic load capacity of 9,000 N
Top product applications:
- Robotics and Automation
- Medical Equipment Manufacturing
- Precision Machinery
Linear Bearing Ball Carriage, Carriage Height 20.2 mm, Carriage Length 39.6 mm, Carriage Width 47 mm, Carriage Material Steel Alloy, Roller Material Steel Alloy, Radial Load - Maximum 67 N, Axial Load - Maximum 67 N, Manufacturer Size 15, Dynamic Load Capacity 9,000 N, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 15 mm, For Use With 500 Series Ball Rail, Static Load Capacity 19,600 N, Combined Carriage and Rail Height 24 mm, Series 500
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.10
- Package Height: 1.50
- Package Weight: 0.29
Product info last updated on February 10, 2026 5:49am UTC
Category: Bearings, V-belts and Power Transmission Equipment
