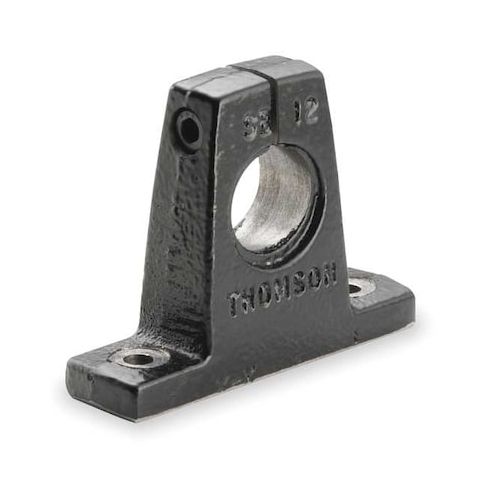

Shaft Support Block, 0.500 In Bore MPN:SB8
Shaft Support Block, 0.500 In Bore
The Shaft Support Block from Thompson is a reliable and durable solution for supporting 60 Case Linear Race Shafts. With a 0.500 in bore and a mounting hole center to center distance of 1.5 in, this support block provides stable and secure mounting for a variety of applications. Made from malleable iron and featuring a painted finish, this support block is built to last. Its compact design makes it ideal for use in tight spaces, and its versatility makes it suitable for a range of industries, including automotive, aerospace, and industrial manufacturing.
Top product features:
- Shaft Support Block provides a bearing surface for a 60 Case Linear Race Shaft.
- Mounting holes allow for secure attachment to a base or other structural component.
- Malleable iron construction provides durability and resistance to wear.
Top product applications:
- Shaft Support Block can be used in automotive applications, such as in the mounting of 60 Case Linear Race Shafts in engine components.
- Shaft Support Block can be used in industrial applications, such as in the mounting of shafts in gearboxes and other mechanical components.
- Shaft Support Block can be used in aerospace applications, such as in the mounting of shafts in aircraft and helicopter components.
Shaft Support Block, System of Measurement Inch, For Use With 60 Case Linear Race Shaft, Nominal Inside Diameter 1/2 in, Mounting Hole Center to Center 1.5 in, Overall Height 1.63 in, Mounting Surface to Shaft Center 1 in, Finish Painted, Material Malleable Iron, Series SB, Bolt Size #8, Base Height 0.25 in, Base Length 2 in, Base Width 0.63 in, Mounting Hole Size 0.19 in, Number of Mounting Holes 2, Top Length 0.75 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 1.80
- Package Height: 1.30
- Package Weight: 0.25
Product info last updated on January 18, 2026 7:08am UTC
Category: Bearings, V-belts and Power Transmission Equipment
