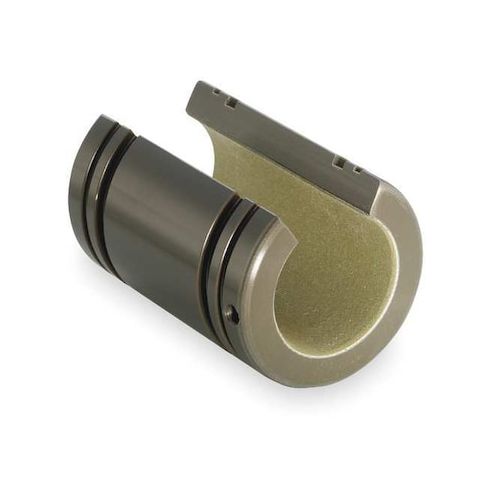

Plain Bushing Bearing, Open, ID 0.250 In MPN:FNYBU04OPN
Plain Bushing Bearing, Open, ID 0.250 In
This Plain Bushing Bearing from Thompson is a high-performance, self-lubricating solution ideal for applications requiring precision and reliability in extreme temperatures. With a static load capacity of 1,334.466 N and operating range of -400°F to 500°F, it can withstand harsh environments. The bearing's aluminum construction and FluoroNyliner liner ensure smooth operation and minimal maintenance. Suitable for use in aerospace, automotive, and industrial applications, this bearing is a reliable choice for high-performance systems. Its compact size and lightweight design make it easy to integrate into various systems, offering a cost-effective solution for demanding applications.
Top product features:
- Self-lubricating design for reduced maintenance and increased operational lifespan
- TEP 950 liner for improved wear resistance and corrosion protection
- Operating temperature range from -400°F to 500°F for use in extreme environments
Top product applications:
- Automotive applications due to high temperature and low temperature capabilities
- Pneumatic cylinder applications due to self-lubricating properties
- High-temperature machinery applications such as conveyor belts or ovens
Plain Bushing Bearing, System of Measurement Inch, Running Clearance Class Precision, Inside Diameter 1/4 in, Outside Diameter 1/2 in, Overall Length 3/4 in, Static Load Capacity 1,334.466 N, Material Aluminum, Liner TEP 950, Self-Lubrication Self-Lubricating, Series FluoroNyliner, Maximum Operating Temperature 500 Degrees F, Minimum Operating Temperature -400 Degrees F, Flange Diameter Not Applicable, Flange Thickness Not Applicable, Bearing Type Open, Recommended Housing Bore -
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 2.00
- Package Weight: 0.03
Product info last updated on January 16, 2026 6:47am UTC
Category: Bearings, V-belts and Power Transmission Equipment
