Super Plus Bushing, Bore Dia 12 mm MPN:SPM12OPNWW
Super Plus Bushing, Bore Dia 12 mm

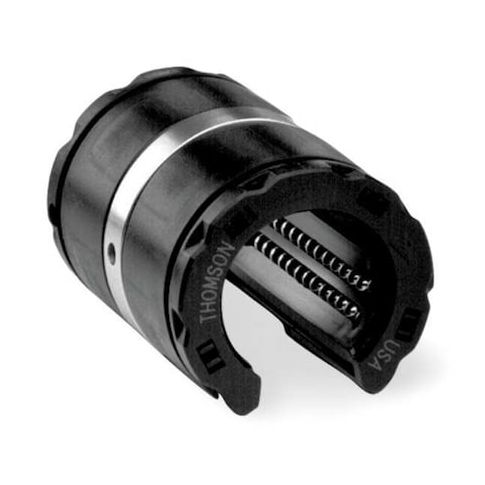

The Super Plus Bushing from Thompson is a high-performance linear ball bearing designed for precise movement and stability. With a bore diameter of 12 mm and an outside diameter of 22 mm, this self-aligning bearing is ideal for applications requiring smooth and quiet operation. Suitable for use in a wide range of industries, including robotics, medical devices, and aerospace, this bearing provides a steady state speed of 3 mm/sec and can withstand temperatures from -18°C to 85°C. Its durable Delrin/steel construction and open ball bearing design make it an excellent choice for applications requiring high precision and reliability.
Top product features:
- Self-Alignment capability allows the bearing to adjust to misalignment between the shaft and housing, reducing wear and increasing lifespan.
- Dynamic Load Capacity of 239 lbf enables the bearing to support heavy loads and withstand stress.
- Material combination of Delrin and Steel provides a durable and resistant construction that can operate in a wide temperature range.
Top product applications:
- High-precision machinery components
- Automotive suspension systems
- Medical equipment components
Linear Ball Bearing, System of Measurement Metric, Inside Diameter 12 mm, Outside Diameter 22 mm, Self-Alignment Self-Aligning, Overall Length 32 mm, Dynamic Load Capacity 239 lbf, Material Delrin/Steel, Series Super, Steady State Speed 3 mm/sec, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Open, Inside Diameter Tolerance + 0.011 mm, Accelerated Speed 150 mm/sec, Slot Width 7 mm, Retention Hole Diameter 3 mm
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.06
Product info last updated on February 10, 2026 10:20am UTC
Category: Bearings, V-belts and Power Transmission Equipment
