Ball Nut End Block, Bore Dia 20 mm MPN:7829549
Ball Nut End Block, Bore Dia 20 mm

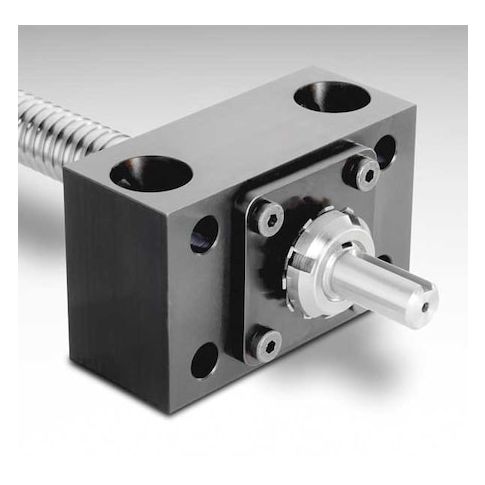

This Ball Nut End Block from Thompson is a precision-engineered component designed for use with ball screws in various applications. Its carbon steel construction and fixed bearing type provide a durable and reliable solution for heavy-duty use. With a static load capacity of 1,832 lbf and axial load capacity of 3,215 lbf, this end block is suitable for demanding applications such as machine tools, robotics, and automation systems. Its compact design and metric measurement system make it a versatile component for use in a range of industries, including manufacturing, aerospace, and automotive.
Top product features:
- Ball Nut End Block is made of carbon steel for durability and resistance to wear.
- Ball Nut End Block has a fixed bearing type for precise and stable operation.
- Ball Nut End Block has a static load capacity of 1,832 lbf and an axial load capacity of 3,215 lbf, indicating its ability to handle significant loads.
Top product applications:
- Machine Tool Applications
- CNC Machine Tooling
- Precision Automation Systems
Ball Nut End Block, Overall Depth 2.7 in, Material Carbon Steel, Bearing Type Fixed, For Use With Precision Ball Screw, Nominal Bore Diameter 1 in, 1.171 in, Thru Bore Diameter 16.66 mm, System of Measurement Metric, Thread Size M20x1, Mounting Hole Diameter 11.91 mm, Overall Height 2.75 in, Overall Width 4.49 in, Length through Bore 2.205 in, Mounting Surface to Shaft Center 1.438 in, Compatible Grainger Part Number 2LGH4, 2LGH5, Static Load Capacity 1,832 lbf, Axial Load Capacity 3,215 lbf
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 4.40
- Package Height: 3.30
- Package Weight: 5.45
Product info last updated on February 13, 2026 7:22pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
