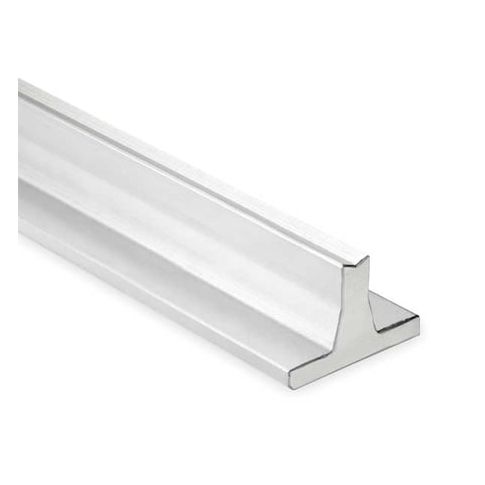

Support Rail, Aluminum, 24in L, 2.75in H MPN:SR20
Support Rail, Aluminum, 24in L, 2.75in H
This aluminum support rail provides a sturdy base for linear shaft systems, ensuring smooth operation and extended lifespan. Measuring 24 inches in length and 2.75 inches in height, it is ideal for use with 60 case shafts. Its compact design allows for easy integration into various applications, including machinery, automation systems, and industrial equipment. By providing a stable platform for shafts, this support rail enables efficient movement and reduces wear and tear, ultimately increasing productivity and reducing maintenance costs. Its durable aluminum construction and standard profile make it a reliable choice for a range of industries and applications.
Top product features:
- Supports linear shafts up to 24in in length
- Made of aluminum for durability and resistance to corrosion
- Mounts to the center of a shaft with a 2.125in distance
Top product applications:
- Machine Tool Mounting
- Automotive Component Support
- Material Handling Equipment
Linear Shaft Support Rail, System of Measurement Inch, Overall Length 24 in, Material Aluminum, Finish Unfinished, Mounting Surface to Shaft Center 2.125 in, Overall Width 2.5 in, Overall Height Not Applicable, Mystery Dimension 2.75 in, Thread Size Not Applicable, Mounting Hole Center to Center Not Applicable, Mounting Hole Center to Shaft End Not Applicable, Base Height 0.31 in, Profile Type Standard Profile, Bolt Size -, For Use With 60 Case Shafts, Mounting Hole Size -
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.30
- Package Width: 3.10
- Package Height: 2.10
- Package Weight: 3.87
Product info last updated on February 6, 2026 8:20pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
