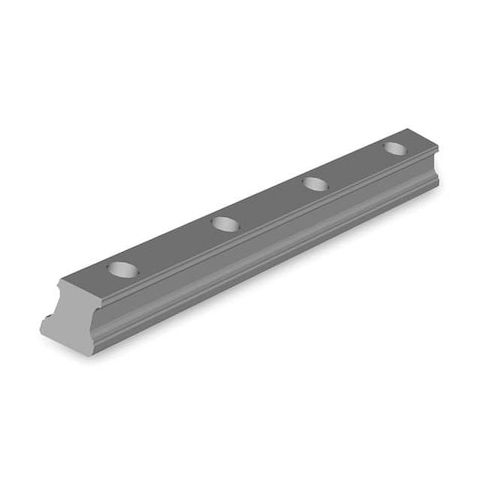

Profile Ball Rail, 160mm L, 20 W, 19 mm H MPN:521H20A+160
Profile Ball Rail, 160mm L, 20 W, 19 mm H
The Thompson Profile Ball Rail is a versatile and reliable component for linear motion systems. With a compact design and hardened steel construction, it offers smooth and precise movement in a variety of applications. Suitable for use with 500 Series ball carriages, it provides a reliable and efficient solution for automation, robotics, and precision machinery. Its operating temperature range of -40 to 176°F makes it suitable for use in a range of environments. Ideal for applications where precision and reliability are crucial, the Profile Ball Rail is a trusted choice for industries such as aerospace, automotive, and medical.
Top product features:
- Hardened steel rail finish for durability and resistance to wear
- Profiled rail design for smooth and precise movement of ball carriages
- Mounting holes with threaded design for secure and easy attachment
Top product applications:
- Linear motion systems for machine tools and CNC equipment
- Automotive manufacturing and assembly lines
- Medical device assembly and testing equipment
Profile Ball Rail, Overall Length 160 mm, Overall Width 20 mm, Overall Height 19 mm, Rail Material Steel, Manufacturer Size 20, Number of Mounting Holes 6, Rail Finish Hardened Steel, Rail Type Profile, System of Measurement Metric, Standards DIN 645-1, For Use With 500 Series Ball Carriages, Operating Temperature - Maximum 176 Degrees F, Operating Temperature - Minimum -40 Degrees F, Mounting Hole Center to Center 60 mm, Mounting Hole Center to Shaft End 20 mm, Mounting Hole Type Threaded
Additional Information
- Country of Origin: DE
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 1.20
- Package Height: 0.80
- Package Weight: 0.78
