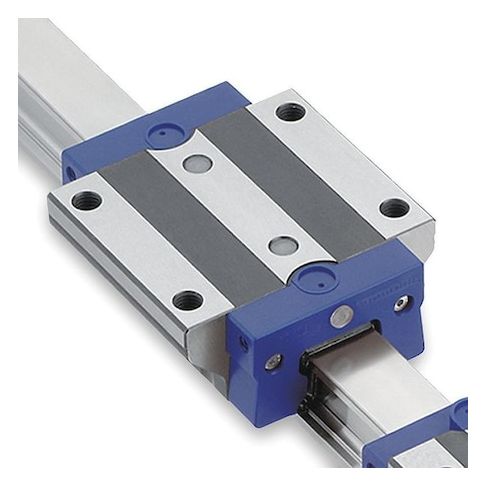

Bearing Ball Carriage, Height 30.50 mm MPN:511H25A1
Bearing Ball Carriage, Height 30.50 mm
The Thompson Bearing Ball Carriage is a high-performance solution for precise linear motion applications. Suitable for use with 500 Series Ball Rail, this carriage features a steel alloy construction and a maximum radial load of 235 N, as well as a maximum axial load of 235 N. Its compact design, measuring 34.5 mm in height and 59.5 mm in length, makes it ideal for applications in automation, robotics, and medical device manufacturing. With a dynamic load capacity of 21,100 N and a static load capacity of 46,100 N, this carriage provides reliable and efficient performance in a range of demanding environments.
Top product features:
- Carriage Height is 34.5 mm, allowing for compact installation in tight spaces.
- Supports radial loads up to 235 N, enabling smooth operation in applications with radial forces.
- Has a dynamic load capacity of 21,100 N, providing reliable performance in demanding environments.
Top product applications:
- Automotive assembly lines
- Robotics and automation systems
- Precision machinery and equipment
Linear Bearing Ball Carriage, Carriage Height 34.5 mm, Carriage Length 59.5 mm, Carriage Width 70 mm, Carriage Material Steel Alloy, Roller Material Steel Alloy, Radial Load - Maximum 235 N, Axial Load - Maximum 235 N, Manufacturer Size 25, Dynamic Load Capacity 21,100 N, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 25 mm, For Use With 500 Series Ball Rail, Static Load Capacity 46,100 N, Combined Carriage and Rail Height 36 mm, Series 500
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.00
- Package Height: 1.70
- Package Weight: 1.39
Product info last updated on February 10, 2026 2:45am UTC
Category: Bearings, V-belts and Power Transmission Equipment
