Super Plus Bushing, Bore Dia 8 mm MPN:SPM08WW
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0491224

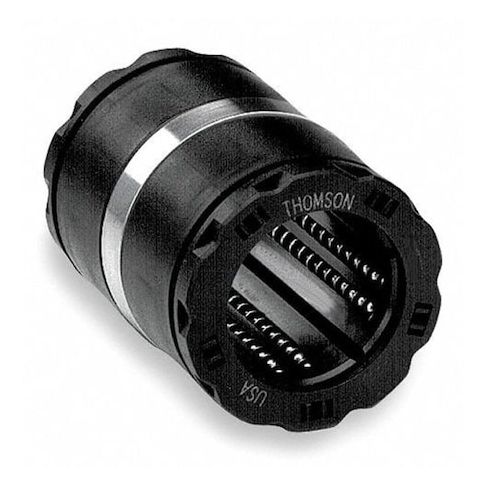

Super Plus Bushing, Bore Dia 8 mm
The Super Plus Bushing from Thompson is a high-performance, self-aligning linear ball bearing designed for demanding applications. With a bore diameter of 8 mm and a dynamic load capacity of 70 lbf, it provides smooth and precise motion in a compact package. Suitable for use in a wide range of industries, including robotics, automation, and medical devices, this bearing excels in applications requiring high-speed and high-precision movement. Its operating temperature range of 0-185°F and steady-state speed of 3 mm/sec make it an ideal choice for applications where reliability and precision are paramount.
Top product features:
- Self-Alignment allows the bearing to adjust to minor misalignments in the bore.
- The bearing is designed for self-aligning, allowing for minor misalignments in the bore.
- The bearing has a closed design, which provides a secure and contained environment for the balls.
Top product applications:
- Automotive Steering Systems
- Robotics and Automation Equipment
- Precision Instrumentation and Measurement Devices
Linear Ball Bearing, System of Measurement Metric, Inside Diameter 8 mm, Outside Diameter 16 mm, Self-Alignment Self-Aligning, Overall Length 25 mm, Dynamic Load Capacity 70 lbf, Material Delrin/Steel, Series Super, Steady State Speed 3 mm/sec, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Ball Bearing Type Closed, Inside Diameter Tolerance + 0.009 mm, Accelerated Speed 150 mm/sec
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.40
- Package Height: 1.40
- Package Weight: 0.04
Product info last updated on January 15, 2026 8:57pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
