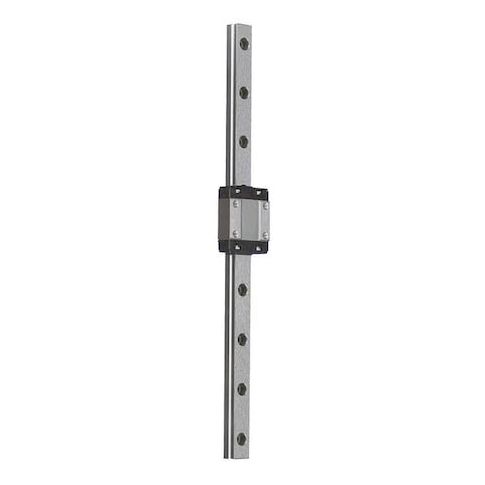

Microguide Assy, Single Carriage, 950 mm L MPN:1TSR12WZMUU+950
Microguide Assy, Single Carriage, 950 mm L
The Thompson Microguide Assy is a precision-engineered component designed for applications requiring smooth and reliable movement. Its stainless steel construction ensures durability and resistance to corrosion, making it ideal for use in harsh environments. With a dynamic load capacity of 4.03 kN, this microguide assembly is suitable for a wide range of industries, including aerospace, medical, and industrial automation. Its compact size and low profile make it perfect for use in tight spaces, while the included seals provide a secure and leak-free operation. This product is suitable for applications such as precision positioning, linear motion, and robotic systems.
Top product features:
- Stainless steel rail material provides durability and resistance to corrosion
- Wide carriage type accommodates heavier loads and increased load capacity
- Running clearance of 4 mm ensures smooth and quiet movement of the carriage
Top product applications:
- Automotive Industry Linear motion systems for manufacturing and assembly lines
- Food and Beverage Industry Sanitary linear motion systems for packaging and processing equipment
- Machine Tool Industry Linear motion systems for machining and material handling applications
Microguide Assembly, Rail Width 24 mm, Number of Carriages 1, Overall Height 14 mm, Rail Length 37.4 in, Rail Material Stainless Steel, Carriage Material Stainless Steel, Carriage Length 44.5 mm, Carriage Width 40 mm, Dynamic Load Capacity 4.03 kN, Carriage Type Wide, Rail Finish Stainless Steel, Running Clearance 4 mm, Rail Height 8.5 mm, Rail Mounting Hole Size 4.5 mm, Carriage Height 10 mm, Carriage Mounting Hole Size M3 x 3.5, Number of Rail Holes 23, Includes Seals Seals Included
Additional Information
- Country of Origin: JP
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 42.00
- Package Width: 2.80
- Package Height: 2.00
- Package Weight: 5.00
Product info last updated on January 10, 2026 9:53am UTC
Category: Bearings, V-belts and Power Transmission Equipment
