Piston Air Compressor, 0.25 hp, 1 Phase MPN:270024
Piston Air Compressor, 0.25 hp, 1 Phase
This compact 12VDC piston air compressor is ideal for powering pneumatic tools and equipment on-the-go. With a maximum continuous pressure of 100 psi and a free air flow rate of 1.8 cfm, it provides reliable and consistent air supply for applications such as tire inflation, air tool operation, and even small-scale industrial projects. Its oil-free design and single-phase operation make it a convenient and low-maintenance option for users. Perfect for use in automotive, marine, and construction industries, this compressor is a valuable addition to any mobile workshop or equipment fleet.
Top product features:
- Lubrication type oil free
- Maximum continuous pressure 100 psi
- Free air flow rate 1.8 cfm
Top product applications:
- Automotive repair shops
- Construction and industrial sites
- Garage and equipment maintenance

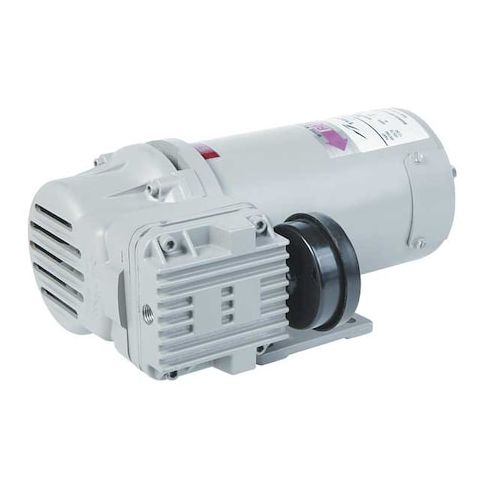

The Thomas 270024 is an oil-free, single-cylinder piston air compressor with an articulated-piston design. It runs on 12V DC power at a rated 1/4 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.7 CFM at 100 psi up to 1.7 CFM at 0 psi, and a maximum continuous pressure of 100 psi. It is rated at a maximum speed of 1,800 RPM, a full-load current of 26 A, and a measured sound level of 70 dBA (@ 100 psi). The operating temperature range is 32-104°F. Construction includes a cast iron cylinder, a permanent-magnet DC motor, and stainless steel valves. The motor is totally enclosed. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 11.562 x 5.812 x 5.812 in (L x W x H). It ships without a power cord. Country of origin: United States.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.60
- Package Height: 10.30
- Package Weight: 22.50
Product info last updated on February 1, 2026 12:03pm UTC
Category: Compressors, Air Tanks and Pneumatic Parts
