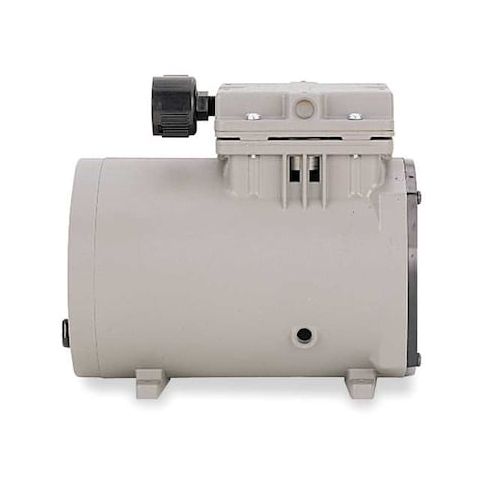

Piston Air Compressor/Vacuum Pump, 1/8HP MPN:617CA22
Piston Air Compressor/Vacuum Pump, 1/8HP
This 1/8HP Piston Air Compressor/Vacuum Pump is a versatile and reliable solution for a variety of applications, including pneumatic tools, air-powered equipment, and laboratory vacuum systems. With its oil-free design and 100 psi maximum pressure, it provides a clean and consistent air supply, making it ideal for use in laboratories, medical facilities, and other environments where contamination is a concern. Its compact size and quiet operation also make it suitable for use in workshops, garages, and other industrial settings, where space and noise are limited.
Top product features:
- Lubrication type is oil free
- Maximum continuous pressure is 100 psi
- Maximum vacuum is 25.6 in Hg
Top product applications:
- Air tool operation for tasks such as pneumatic wrenches and impact guns
- Painting and coating applications where compressed air is used to atomize paint
- Operating pneumatic tools and equipment in a garage or workshop setting
The Thomas 617CA22 is an oil-free, single-cylinder piston air compressor and vacuum pump with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/8 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.07 CFM at 100 psi up to 0.78 CFM at 0 psi, a maximum continuous pressure of 100 psi, and a maximum vacuum of 25.6 in Hg. It is rated at a maximum speed of 1,540 RPM, a full-load current of 3.1 A, and a measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder, a shaded-pole motor (thermally protected, with a high-torque start winding), and corrosion-resistant sandwich valves in stainless steel. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 8 x 5 x 6.8 in (L x W x H). It includes a 6 ft power cord. Country of origin: United States. The manufacturer lists typical applications including aeration, beverage dispensing, business machines, packaging, photographic processing, OEM use (intermittent & continuous duty).
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 11.00
- Package Height: 7.50
- Package Weight: 11.00
