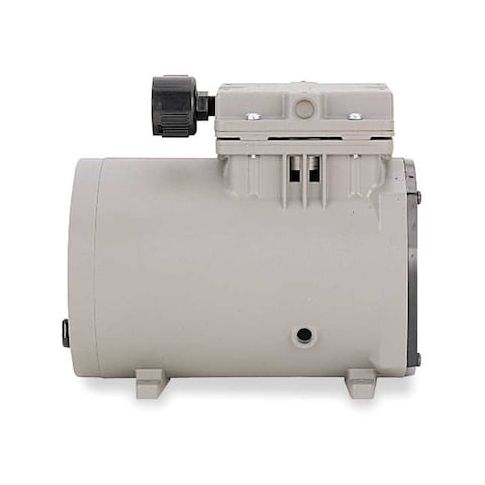

Piston Air Compressor, 0.125 hp, 1 Phase MPN:617CA32

The Thomas 617CA32 is an oil-free, single-cylinder piston air compressor with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/8 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery ranging from 0.66 CFM at 50 psi up to 1.22 CFM at 0 psi, a maximum continuous pressure of 50 psi, and a maximum vacuum of 26.8 in Hg. It is rated at a maximum speed of 1,400 RPM, a full-load current of 4.6 A, and a measured sound level of 55-58 dBA. The operating temperature range is 50-104°F. Construction includes an aluminum cylinder, a shaded-pole motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 13 x 9 x 9 in (L x W x H). It includes a 6 ft power cord. Country of origin: United States.
