Piston Air Compressor/Vacuum Pump, 1/3HP MPN:2688VE44
Piston Air Compressor/Vacuum Pump, 1/3HP
This 1/3HP piston air compressor/vacuum pump is a reliable and efficient addition to any workshop or laboratory. Perfect for applications requiring a moderate air supply or vacuum, this oil-free compressor delivers a free air flow rate of 1.6 cfm and a maximum vacuum of 29 in Hg. With a compact design and easy maintenance, it's ideal for tasks such as powering pneumatic tools, inflating tires, or creating a vacuum for various industrial processes. Its 115V AC operation and single-phase design make it a versatile option for a wide range of applications, from automotive to medical and laboratory settings.
Top product features:
- Oil-free lubrication
- 2-cylinder design
- 29 in Hg maximum vacuum capability
Top product applications:
- Automotive repair shops for tire inflation and deflation
- Industrial laboratories for vacuum and pressure testing
- Woodworking shops for pneumatic tool operation

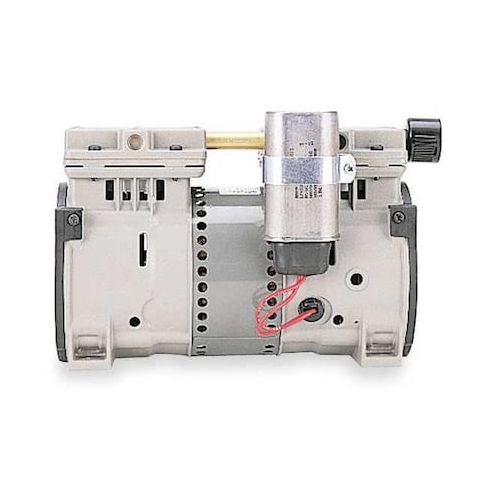

The Thomas 2688VE44 is an oil-free, twin-cylinder piston air compressor and vacuum pump with a WOB-L (wobble) piston design. It operates on 115V AC single-phase power at 60 Hz at a rated 1/3 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air delivery of 1.6 CFM at 0 psi, and a maximum vacuum of 29 in Hg. It is rated at a maximum speed of 1,750 RPM, a full-load current of 3.2 A, and a measured sound level of 63 dBA (@ 60 psi). The operating temperature range is 50-104°F. Construction includes an aluminum cylinder, a shaded-pole motor (thermally protected, with a high-torque start winding), and corrosion-resistant sandwich valves in stainless steel. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 9.625 x 6.75 x 7.1 in (L x W x H). It includes a 6 ft power cord. Country of origin: United States.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 13.20
- Package Width: 9.20
- Package Height: 9.60
- Package Weight: 17.40
Product info last updated on February 18, 2026 2:21am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
