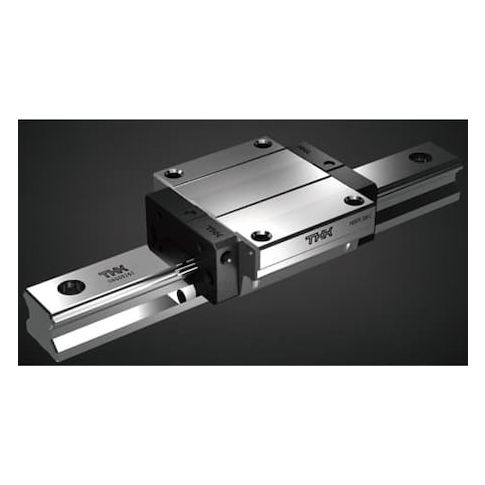

Linear Guide Carriage, 102.2 mm L, 70 mm W MPN:HSR25LC1SS
Linear Guide Carriage, 102.2 mm L, 70 mm W
The THK Linear Guide Carriage is a precision-engineered component designed for high-performance applications. With a sturdy carbon steel construction and ball-type carriage, it provides exceptional stability and durability. Ideal for use with profile rails, this carriage offers a maximum radial load capacity of 35.2 kN and a combined carriage and rail height of 36 mm. Suitable for a range of industries, including automation, robotics, and precision machinery, this component ensures smooth and precise motion. Its compact design and ease of installation make it an attractive choice for applications requiring high load capacity and low friction.
Top product features:
- Supports radial loads up to 35.2 kN
- Carries axial loads up to 51.6 kN
- Requires lubrication to ensure smooth operation
Top product applications:
- Automotive components
- Machine tooling and manufacturing equipment
- Robotics and automation systems
Linear Guide Carriage, Carriage Height 30.5 mm, Carriage Length 102.2 mm, Carriage Width 70 mm, Carriage Material Carbon Steel, Roller Material Carbon Steel, Radial Load - Maximum 35.2 kN, Axial Load - Maximum Not Applicable, Manufacturer Size 25, Dynamic Load Capacity 35.2 kN, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 23 mm, For Use With Profile Rail, Static Load Capacity 51.6 kN, Combined Carriage and Rail Height 36 mm, Series HSR-LC
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 3.00
- Package Height: 4.00
- Package Weight: 1.65
Product info last updated on February 23, 2026 9:26am UTC
Category: Bearings, V-belts and Power Transmission Equipment
