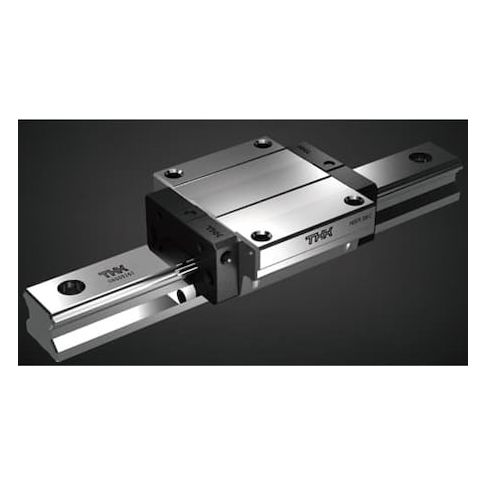

Linear Guide Carriage, 83.1 mm L, 70 mm W MPN:HSR25C1SSC1
Linear Guide Carriage, 83.1 mm L, 70 mm W
The THK Linear Guide Carriage is a high-performance component designed for use in precision motion control applications. With a maximum radial load of 36.4 kN and a dynamic load capacity of 27.6 kN, it provides reliable and consistent performance in demanding environments. Its compact design and low profile make it ideal for use in robotics, CNC machines, and other precision equipment. The carriage is made of carbon steel and features ball bearings for smooth and quiet operation. It requires lubrication but is designed for use with profile rail, making it a versatile and efficient solution for a wide range of applications.
Top product features:
- Linear Guide Carriage supports radial loads of up to 36.4 kN.
- The product has a dynamic load capacity of 27.6 kN.
- The carriage type is a ball type, suitable for use with profile rail.
Top product applications:
- Machine Tools
- Robotics and Automation
- Medical Equipment
Linear Guide Carriage, Carriage Height 30.5 mm, Carriage Length 83.1 mm, Carriage Width 70 mm, Carriage Material Carbon Steel, Roller Material Carbon Steel, Radial Load - Maximum 36.4 kN, Axial Load - Maximum Not Applicable, Manufacturer Size 25, Dynamic Load Capacity 27.6 kN, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 23 mm, For Use With Profile Rail, Static Load Capacity 36.4 kN, Combined Carriage and Rail Height 36 mm, Series HSR-C
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.10
- Package Width: 3.00
- Package Height: 1.40
- Package Weight: 1.41
Product info last updated on April 27, 2026 9:08am UTC
Category: Bearings, V-belts and Power Transmission Equipment
