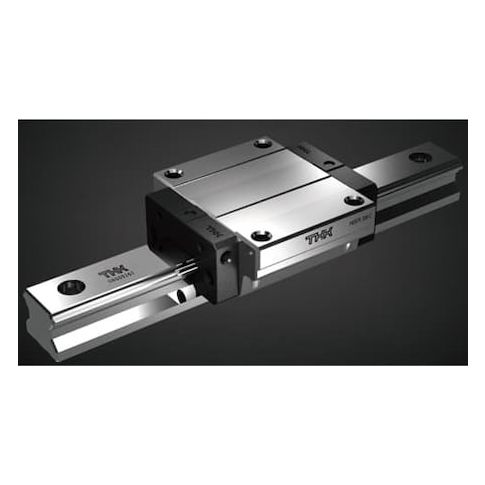

Linear Guide Carriage, 90 mm L, 63 mm W MPN:HSR20LC1SS
Linear Guide Carriage, 90 mm L, 63 mm W
The THK Linear Guide Carriage is a high-performance component ideal for precision applications in industries such as robotics, medical devices, and aerospace. Its compact design and low-friction ball bearings enable smooth and accurate movement, making it perfect for use in assembly lines, machine tools, and other precision machinery. With a maximum radial load of 23.9 kN and a static load capacity of 35.8 kN, this carriage can handle demanding applications while maintaining a low profile of 26 mm. Its versatility and reliability make it an excellent choice for manufacturers seeking precision and efficiency in their production processes.
Top product features:
- Linear Guide Carriage is designed to carry loads radially with a maximum capacity of 23.9 kN.
- The carriage has a ball-type design for smooth and precise movement.
- The product is designed to be used with a profile rail, allowing for linear motion and precise positioning.
Top product applications:
- Machine Tool Automation
- Robotics and Mechatronics Systems
- Automated Material Handling Systems
Linear Guide Carriage, Carriage Height 26 mm, Carriage Length 90 mm, Carriage Width 63 mm, Carriage Material Carbon Steel, Roller Material Carbon Steel, Radial Load - Maximum 23.9 kN, Axial Load - Maximum Not Applicable, Manufacturer Size 20, Dynamic Load Capacity 23.9 kN, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 20 mm, For Use With Profile Rail, Static Load Capacity 35.8 kN, Combined Carriage and Rail Height 30 mm, Series HSR-LC
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 11 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.25
- Package Width: 2.50
- Package Height: 3.75
- Package Weight: 1.25
Product info last updated on February 8, 2026 11:25am UTC
Category: Bearings, V-belts and Power Transmission Equipment
