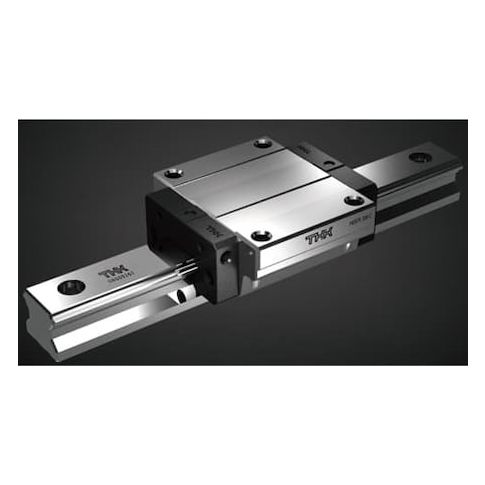

Linear Guide Carriage, 109.4 mm L, 100mm W MPN:HSR35C1SSC1
Linear Guide Carriage, 109.4 mm L, 100mm W
The THK Linear Guide Carriage is a high-performance solution for precision linear motion applications. With a maximum radial load of 53.9 kN and a static load capacity of 70.2 kN, this carriage is ideal for use in heavy-duty manufacturing, assembly, and inspection lines. Its compact design and low profile make it perfect for applications where space is limited, such as in robotics, automation, and medical equipment. The carriage's ball-type design and carbon steel construction ensure smooth and quiet operation, while its lubrication requirement ensures long-lasting performance. Suitable for use with profile rail, this carriage is a reliable choice for demanding applications.
Top product features:
- It has a maximum radial load capacity of 53.9 kN.
- It is designed for use with a 34 mm wide profile rail.
- It requires lubrication to function properly.
Top product applications:
- Machine Tool Applications
- Robotics and Automation
- Automotive Assembly Lines
Linear Guide Carriage, Carriage Height 40.5 mm, Carriage Length 109.4 mm, Carriage Width 100 mm, Carriage Material Carbon Steel, Roller Material Carbon Steel, Radial Load - Maximum 53.9 kN, Axial Load - Maximum Not Applicable, Manufacturer Size 35, Dynamic Load Capacity 53.9 kN, Requires Lubrication Lubricant Required, Carriage Type Ball, For Rail Width 34 mm, For Use With Profile Rail, Static Load Capacity 70.2 kN, Combined Carriage and Rail Height 48 mm, Series HSR-LC
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 8 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 4.00
- Package Height: 4.50
- Package Weight: 3.50
