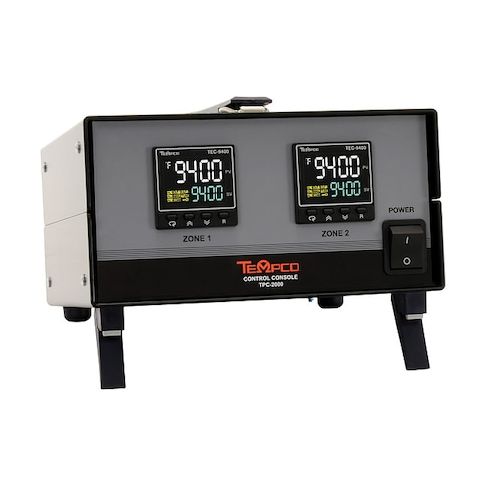

Temp Controller, J, 2 Zone, 240V MPN:TPC20013
Temp Controller, J, 2 Zone, 240V
This two-zone temperature controller is designed for precise temperature control in industrial applications. With a temperature range of -184°F to 1832°F, it can handle demanding processes such as heat treatment, annealing, and high-temperature chemical reactions. The PID control mode with auto-tune feature ensures accurate temperature control and stability. The two 6A SSR outputs can be used to power heating or cooling elements, making it suitable for applications such as heat exchangers, reactors, and furnaces. Its compact DIN size and robust construction make it ideal for use in industrial settings where space is limited.
Top product features:
- Temperature range of -184 Degrees to 1832 Degrees F
- 2 controlled zones with separate temperature settings
- PID control mode with auto-tune and proportional band adjustment
Top product applications:
- Laboratory equipment for high-temperature applications such as heat treatment and annealing of metals.
- Industrial processes requiring precise temperature control, such as chemical synthesis and material processing.
- Research and development in fields like materials science and nanotechnology, where precise temperature control is essential.
Temperature Controller, Digital, J Sensor Type, DIN Size Not Applicable, Input Voltage 240V AC, Output (2) 6 A SSR, Temp. Range -184 Degrees to 1832 Degrees F, Control Mode PID, 4/Zone Amps, Length 4.87 in, Width 8.25 in, Depth 9 in, Control Period 1 Sec, 2 Controlled Zones, PID With Auto Tune, Hysteresis -, Proportional Band 18 F Default, Setting Accuracy -, Alarms No Alarm, Power Consumption 24 VA, Standards -
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.40
- Package Width: 12.50
- Package Height: 8.70
- Package Weight: 7.97
Product info last updated on February 1, 2026 12:29pm UTC
Category: Industrial Electrical Controls and Automation
