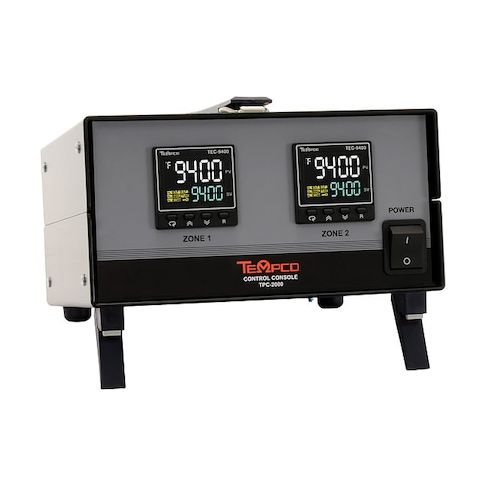

Temp Controller, K, 2 Zone, 120V MPN:TPC20010
Temp Controller, K, 2 Zone, 120V
This 2-zone temperature controller is designed for precise temperature control in a variety of applications, including industrial processes, laboratory equipment, and HVAC systems. With a temperature range of -328°F to 2498°F, it can handle extreme temperature conditions. The PID control mode with auto-tune feature ensures accurate and stable temperature control. The two 6A SSR outputs allow for simultaneous control of two separate zones. This controller is ideal for use in applications where precise temperature control is critical, such as in manufacturing, research, and development, and in industries like aerospace, automotive, and pharmaceuticals.
Top product features:
- Two Zone Temperature Control: allows for independent temperature control of two separate zones.
- PID Control with Auto Tune: enables precise temperature control and automatic adjustment of control parameters for optimal performance.
- Six Amp Solid-State Relays: provide high-current output for controlling heating or cooling elements in each zone.
Top product applications:
- Laboratory equipment for high-temperature experiments
- Industrial process control for manufacturing
- Material testing and analysis in research and development settings
Temperature Controller, Digital, K Sensor Type, DIN Size Not Applicable, Input Voltage 120V AC, Output (2) 6 A SSR, Temp. Range -328 Degrees to 2498 Degrees F, Control Mode PID, 4/Zone Amps, Length 4.87 in, Width 8.25 in, Depth 9 in, Control Period 1 Sec, 2 Controlled Zones, PID With Auto Tune, Hysteresis -, Proportional Band 18 F Default, Setting Accuracy -, Alarms No Alarm, Power Consumption 24 VA, Standards -
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.70
- Package Width: 12.40
- Package Height: 8.70
- Package Weight: 7.93
Product info last updated on February 3, 2026 8:07am UTC
Category: Industrial Electrical Controls and Automation
