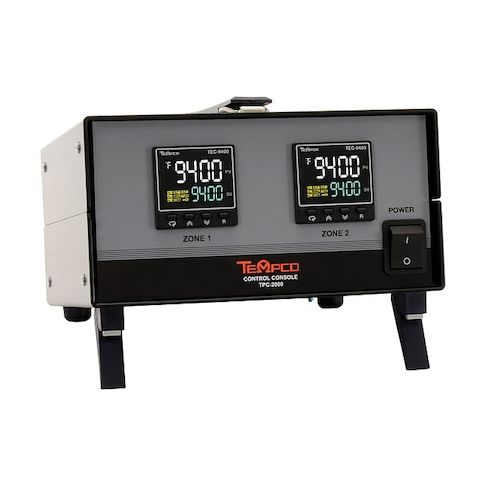

Temp Controller, RTD, 2 Zone, 120V MPN:TPC20012
Temp Controller, RTD, 2 Zone, 120V
This advanced 2-zone temperature controller is designed for precise temperature control in a variety of applications, including industrial processes, laboratories, and research facilities. With a temperature range of -346°F to 1292°F, it can handle extreme temperature requirements. The controller features PID control mode with auto-tune, allowing for accurate and stable temperature control. Its two 6A SSR outputs can be used to control heaters, chillers, or other temperature-dependent equipment. This controller is ideal for use in applications such as material processing, chemical reactions, and pharmaceutical manufacturing, where precise temperature control is critical.
Top product features:
- Temperature range of -346 Degrees to 1292 Degrees F
- Two controlled zones with separate SSR outputs
- PID control with auto-tune and proportional band adjustment
Top product applications:
- Laboratory equipment for precise temperature control in various experiments and testing procedures
- Process control in chemical and pharmaceutical manufacturing facilities
- Temperature control in industrial kilns and furnaces for metalworking and ceramic production
Temperature Controller, Digital, RTD Sensor Type, DIN Size Not Applicable, Input Voltage 120V AC, Output (2) 6 A SSR, Temp. Range -346 Degrees to 1292 Degrees F, Control Mode PID, 4/Zone Amps, Length 4.87 in, Width 8.25 in, Depth 9 in, Control Period 1 Sec, 2 Controlled Zones, PID With Auto Tune, Hysteresis -, Proportional Band 18 F Default, Setting Accuracy -, Alarms No Alarm, Power Consumption 24 VA, Standards -
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.40
- Package Width: 12.40
- Package Height: 8.80
- Package Weight: 8.06
Product info last updated on February 23, 2026 12:17am UTC
Category: Industrial Electrical Controls and Automation
