Cordset, 16.4 ft., Gray, 250VAC/300VDC MPN:XZCPV1041L5
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G6866185

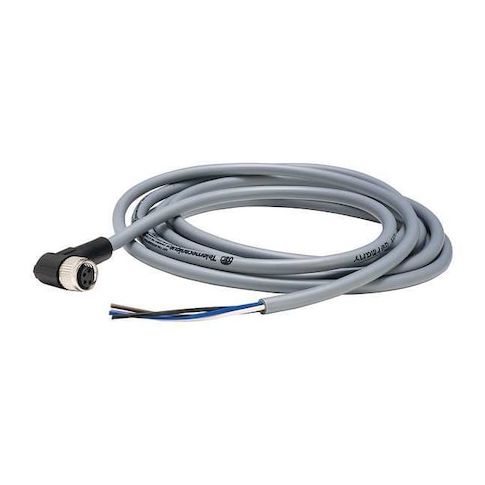

Cordset, 16.4 ft., Gray, 250VAC/300VDC
This 16.4 ft. gray cordset from Telemecanique Sensors is designed for reliable connections in a variety of applications, including industrial automation, robotics, and process control. With a maximum operating temperature of 176°F and a minimum operating temperature of -13°F, this cordset can withstand harsh environments. Its 250VAC/300VDC rating and 3A maximum current make it suitable for high-power applications. The M8 female connector on one end and bare wire on the other provide flexibility and ease of use. Perfect for use in hazardous locations, this cordset meets IP65 and IP67 ratings for dust and water resistance.
Top product features:
- Right angle mounting orientation allows for compact installation in tight spaces.
- The product has a 4-pin M8 female connection on one end.
- The product has a bare wire connection on the other end.
Top product applications:
- Industrial Control Systems
- Motor Control Circuits
- Robotics and Automation Systems
Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 4, End 1 Mounting Orientation Right Angle, End 1 Connection Type M8, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Gray, Cable Jacket Material PVC, Max. Amps 3 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
Additional Information
- Country of Origin: CZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 7.00
- Package Height: 1.00
- Package Weight: 0.39
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on February 2, 2026 12:38pm UTC
Category: Industrial Electrical Controls and Automation
