DPST Liquid Level Switch Close on Rise 575VAC MPN:9037EG8
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3313475

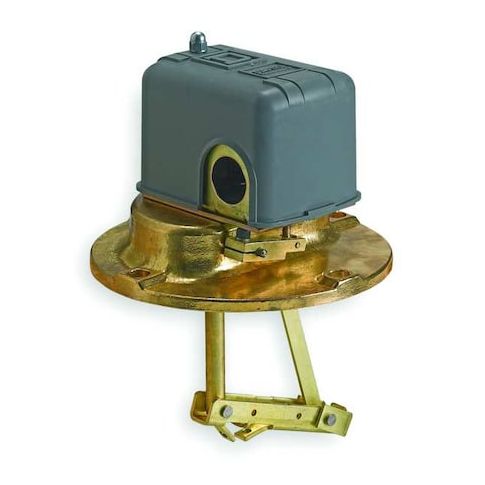

DPST Liquid Level Switch Close on Rise 575VAC
The Telemecanique Sensors DPST Liquid Level Switch is a reliable and efficient solution for monitoring liquid levels in various applications. Designed for use in vertical open tanks, this switch features a closed liquid level design that closes on rise, ensuring accurate and consistent readings. With a maximum current of 600A and a voltage rating of 575VAC, it can handle high-power applications with ease. Suitable for use in temperatures ranging from -22 to 220°F, this switch is ideal for industrial processes, chemical plants, and water treatment facilities, providing a safe and reliable way to monitor liquid levels and prevent overflows.
Top product features:
- Closed Liquid Level Switch with Close On Rise Function
- Switch Function Activates When Liquid Level Rises
- Float Travel of 2 1/16 in Allows for Sensing of Wide Liquid Ranges
Top product applications:
- Level monitoring in chemical processing plants
- Monitoring liquid levels in storage tanks for oil and gas industry
- Automated control of liquid levels in water treatment plants
Closed Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Float Travel 2 1/16 in, NEMA Rating 1, Tank Connection Size 5-1/8 in, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 3.86 in, Height 5.56 in, Width 3.43 in, Contact Form DPST-2NC, Max. Current 600 A, Max. Voltage 575 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Steel, Float Position Below, Float Rod Angle Horizontal, Conduit Size 1/2 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.10
- Package Width: 7.60
- Package Height: 7.60
- Package Weight: 4.40
Product info last updated on February 2, 2026 9:02am UTC
Category: Pump Controls
