Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded MPN:XS112BLPAM12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3178341

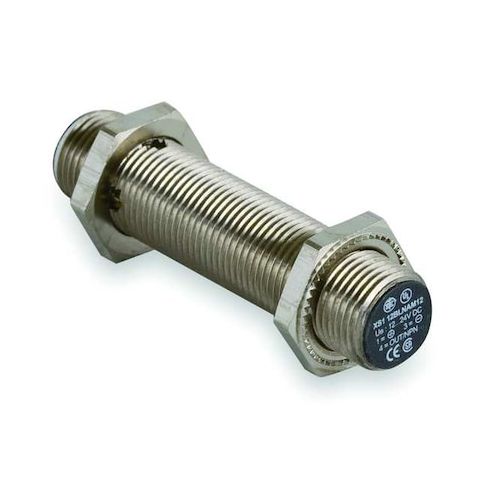

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Shielded
This inductive proximity sensor is a reliable and efficient solution for detecting objects in industrial environments. Its compact cylindrical design, measuring 41 mm in length and 12 mm in diameter, makes it easy to integrate into a variety of applications. The sensor operates at 2,000 Hz, providing a high level of accuracy and consistency. With a maximum detecting distance of 2 mm and a 3-wire PNP output, it can be easily connected to a control system. Suitable for use in harsh environments, the sensor features an IP67 rating and a NEMA 4X rating, making it ideal for applications in manufacturing, packaging, and material handling.
Top product features:
- Inductive proximity sensing technology allows the sensor to detect objects without physical contact
- Operates at a frequency of 2,000 Hz for reliable detection
- Has a maximum detecting distance of 2 mm for precise object detection
Top product applications:
- Automotive applications due to its NEMA rating and IP67 rating for harsh environments
- Material handling equipment for detecting objects such as pallets or boxes
- Medical equipment for detecting the presence of medical devices or equipment
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 24V DC, Shielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.70
- Package Height: 2.50
- Package Weight: 0.08
Product info last updated on February 11, 2026 2:48pm UTC
Category: Industrial Electrical Controls and Automation
