AlternatrOpnLiquidLvlSwtch, Steel, DPST4NC MPN:9038AG1N4
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3162975

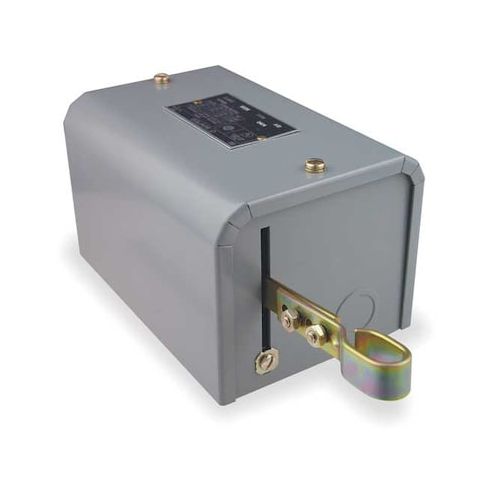

AlternatrOpnLiquidLvlSwtch, Steel, DPST4NC
This versatile liquid level switch from Telemecanique Sensors is designed for reliable detection of liquid levels in alternators, tanks, and other applications. With a close-on-rise function, it ensures accurate and efficient monitoring of liquid levels, preventing overfilling and reducing the risk of damage. Its robust stainless steel float and steel body make it suitable for use in harsh environments, while its compact size and easy installation make it ideal for a wide range of industries, including oil and gas, chemical processing, and wastewater treatment. Its high current and voltage ratings also make it suitable for demanding applications.
Top product features:
- Close On Rise function allows the switch to activate when the liquid level rises.
- The switch is rated for 10 A amps.
- The float travel is 1 1/4 in, allowing for a precise measurement of the liquid level.
Top product applications:
- Liquid level control in oil tanks
- Monitoring liquid levels in chemical storage tanks
- Automated shutdown of pumps in water treatment plants
Alternator Open Liquid Level Switch, 10 A Amps, Contact Form DPST-4NC, VA Rating 460V AC, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 10.32 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.5 in, Width 4.69 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Steel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.10
- Package Width: 5.70
- Package Height: 5.20
- Package Weight: 4.70
Product info last updated on February 22, 2026 11:07pm UTC
Category: Industrial Electrical Controls and Automation
