Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded MPN:XS612B1MBL2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2949581

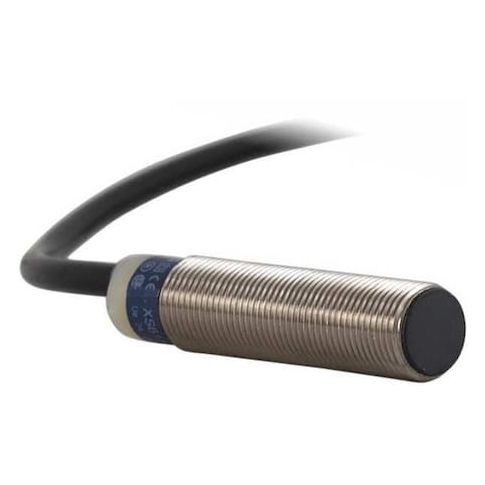

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, 2 m, Bare Wire, 2 Wires, Shielded
This inductive proximity sensor is a compact, cylindrical device that detects the presence or absence of objects within a 4 mm range. Suitable for use in a variety of applications, including industrial automation, material handling, and safety systems, it operates reliably in harsh environments. The sensor's shielded design and IP68/IP69K rating ensure resistance to dust, water, and extreme temperatures. With a power requirement of 24-240V AC/DC and a maximum current load of 200mA, it can be easily integrated into existing systems. Its compact size and durable construction make it an ideal choice for a range of industrial and commercial applications.
Top product features:
- Inductive proximity sensor detects objects within 4 mm
- Shielded design provides immunity to electromagnetic interference
- Operating frequency range of 25 Hz AC/1000 Hz DC allows for versatility in use
Top product applications:
- Automotive Industry: Monitoring fuel levels or detecting the presence of a key in the ignition
- Industrial Automation: Detecting the presence of objects or materials in a manufacturing process
- Medical Equipment: Monitoring the presence of medical devices or equipment in a hospital or medical facility
Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 25 Hz AC/1000 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.80
- Package Height: 1.70
- Package Weight: 0.20
Product info last updated on January 13, 2026 1:22pm UTC
Category: Industrial Electrical Controls and Automation
