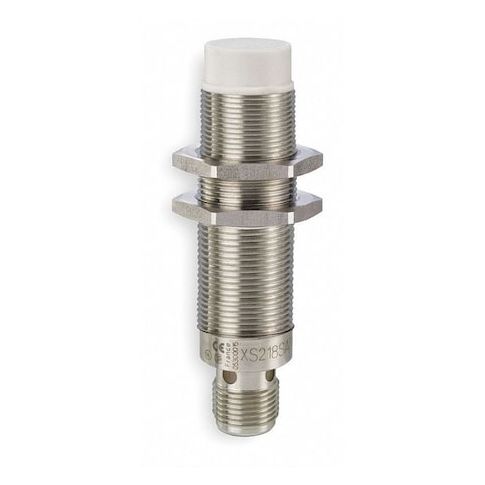

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:XS218BLNAM12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2915211
Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, M12, 3 Wires, Unshielded
The Telemecanique Sensors Inductive Cylindrical Proximity Sensor is a reliable and efficient solution for detecting objects and presence in various industrial applications. With its 18mm diameter and 41mm length, this sensor is suitable for use in tight spaces and can be easily integrated into existing systems. The sensor's 3-wire NPN output and 4-pin M12 connector provide a convenient and secure connection. Its IP67 rating and NEMA 4X rating ensure durability and protection against harsh environments. Ideal for use in manufacturing, material handling, and automation, this sensor provides accurate detection and reliable performance in a compact and rugged design.
Top product features:
- Cylindrical design allows for easy mounting in tight spaces
- Detects objects at a distance of up to 8 mm
- Operates at frequencies of up to 250 Hz
Top product applications:
- Industrial Automation
- Material Handling Systems
- Automotive Manufacturing
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 250 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.70
- Package Height: 2.60
- Package Weight: 0.15
Product info last updated on January 13, 2026 1:17pm UTC
Category: Industrial Electrical Controls and Automation
