Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded MPN:XS218BLNBL2
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2680596

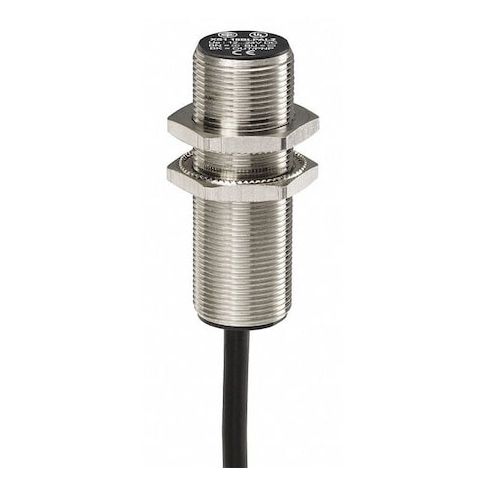

Cylindrical, Inductive Proximity Sensor, 18 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded
This inductive proximity sensor is designed for detecting metal objects in industrial settings. It features a compact cylindrical design and a nickel-plated brass case that can withstand harsh environments. The sensor operates within a 12-24V DC power range and has a maximum detecting distance of 8mm. It's ideal for use in applications such as conveyor belt monitoring, material handling, and robotic automation. The sensor's NPN output and 100mA current load make it suitable for a variety of control circuits. Its IP67 rating and NEMA 4X rating ensure it can withstand exposure to dust, water, and extreme temperatures.
Top product features:
- Operates at a frequency of 250 Hz
- Detects objects up to 8 mm away
- Has a 3 wire NPN output circuit
Top product applications:
- Automotive applications due to its high temperature range and IP67 rating
- Medical equipment due to its compact size and ease of integration
- Industrial automation due to its high frequency and long cable length
Inductive Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 250 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NC, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 4.90
- Package Height: 0.80
- Package Weight: 0.22
Product info last updated on January 13, 2026 1:30pm UTC
Category: Industrial Electrical Controls and Automation
