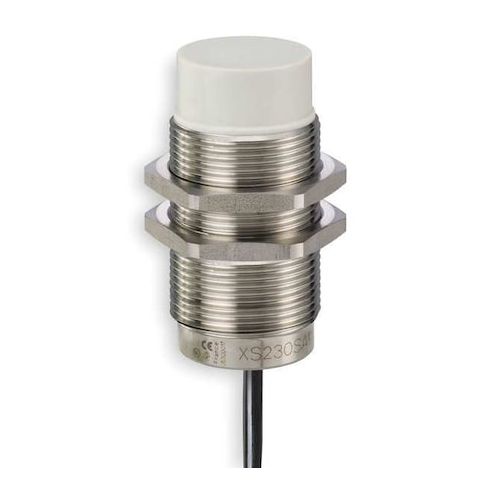

Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Unshielded MPN:XS230BLNAM12
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2284021
Cylindrical, Inductive Proximity Sensor, 30 mm Dia., Brass, M12, 3 Wires, Unshielded
This inductive proximity sensor is a reliable and efficient solution for detecting objects in a variety of applications. Its cylindrical design and 30mm diameter make it ideal for use in tight spaces, while its 12-24V DC power requirement and 60Hz operating frequency ensure smooth operation. The sensor's 3-wire NPN output and 4-pin M12 connector provide easy integration with existing systems. Suitable for use in harsh environments, the sensor features a NEMA rating of 4X and IP67 rating, and can operate in temperatures ranging from -13 to 158°F. Ideal for use in manufacturing, material handling, and automation applications.
Top product features:
- Cylindrical shape allows for easy mounting in tight spaces.
- Detects objects up to 15 mm away.
- Operates at frequencies of up to 60 Hz.
Top product applications:
- Industrial Automation
- Material Handling Systems
- Robotics and Machine Vision
Inductive Cylindrical Proximity Sensor, Inductive, 30 mm, Proximity Sensor Power Requirement 12 to 24V DC, Unshielded, Proximity Sensor Operating Frequency 60 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 15 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NO, NEMA Rating 4X, IP Rating IP67, Case Material Nickel Plated Brass, Length 41 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
Additional Information
- Country of Origin: ID
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.80
- Package Width: 1.80
- Package Height: 2.70
- Package Weight: 0.30
Product info last updated on January 13, 2026 12:23pm UTC
Category: Industrial Electrical Controls and Automation
